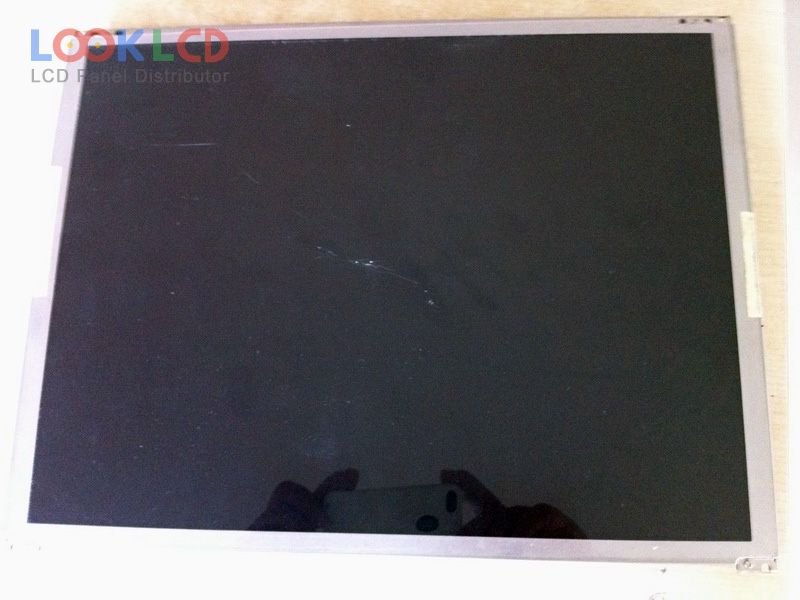

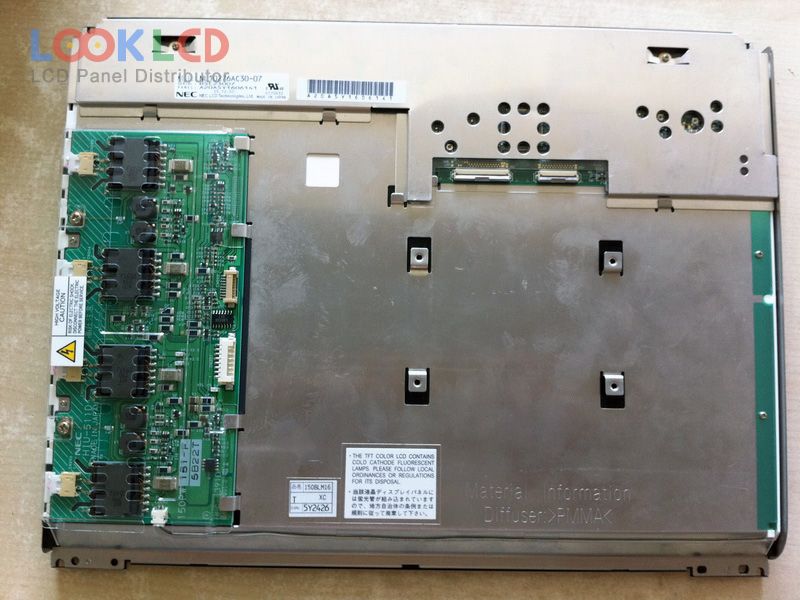

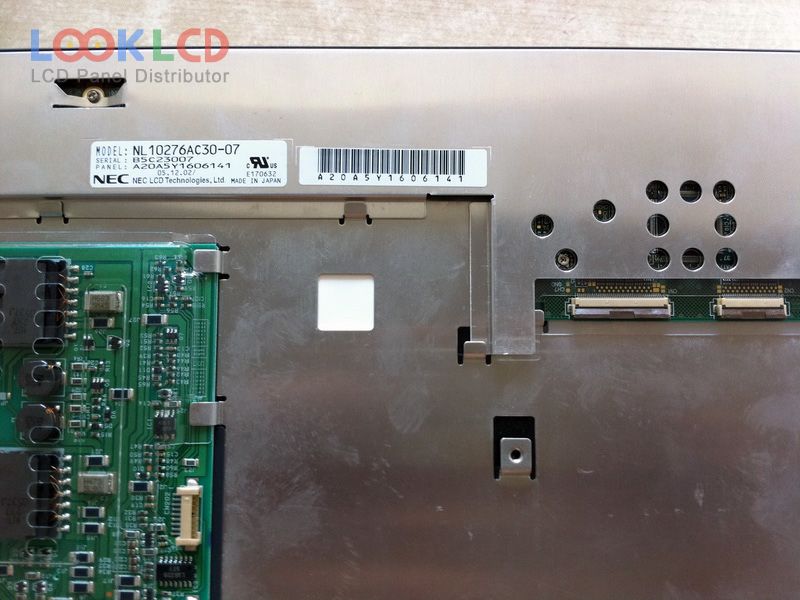

| PartNumber | NL10276AC30-07 |
| Znamka | NLT |
| Velikost | 15.0 |
| Aplikacija | DMPC |
| Resolucija | 1024×768 |
| Sestava | LCM |
| Svetlost | 400 |
| CR | 300:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | CCFL |
| Vmesnik | TTL |
| znamka plošče | NEC |
| panelni model | NL10276AC30-07 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 15.0 inch |
| resolucija | 1024(RGB)×768 , XGA |
| način prikaza | Normally Black, Transmissive |
| aktivno območje | 304.128×228.096 mm |
| oris | 330×256×30 mm |
| površino | Hard coating (2H) |
| svetlost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 300:1 (Typ.) |
| barve zaslona | 16.7M (6-bit + Hi-FRC), CIE193160% |
| odzivni čas | 10/10 (Typ.)(Tr/Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 8 pcsCCFLEmbedded (Inverter) |
| signalni vmesnik | TTL (2 ch, 8-bit), 75 pins |
| vhodna napetost | 5.0V (Typ.) |
| aplikacija | DMPC |
