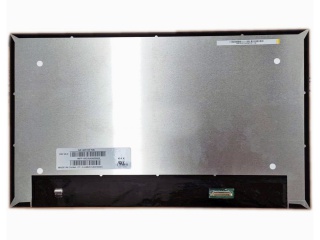

| PartNumber | NE140FHM-N6L |
| Znamka | BOE |
| Velikost | 14.0 |
| Aplikacija | Laptop |
| Resolucija | 1920×1080 |
| Sestava | LCM, Oxide TFT-LCD |
| Svetlost | |
| CR | 1500:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 10S6P |
| Vmesnik | eDP |
| proizvajalec | BOE |
| ime modela | NE140FHM-N6L (BOE08A3) |
| velikost zaslona | 14.0 inch |
| vrsto zaslona | LCM, Oxide TFT-LCD |
| število slikovnih pik | 1920(RGB)×1080 (FHD) 157PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 309.312 × 173.988 (H×V) |
| obris (mm) | 314.31 × 185.09 × 3.8 (H×V×D) |
| površina okvirja (mm) | - |
| zdravljenje | Antiglare, Hard coating (3H) |
| svetilnost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 1500 : 1 (Typ.) (TM) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| odgovor | 12 (Typ.)(Tr+Td) ms |
| dober pogled na | Symmetry |
| način dela | ADS, Normally Black, Transmissive |
| barvna globina | 16.7M 100% sRGB |
| osvetlitev ozadja | 10S6P WLED , 15K hours , With LED Driver |
| obrisna oblika | Slim (PCBA Bent, T≤3.0mm) |
| uporablja za | Laptop |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | Without |
| vrsto signala | eDP (2 Lanes) , eDP1.4 , HBR1 (2.7G/lane) , Connector 30 pins |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
