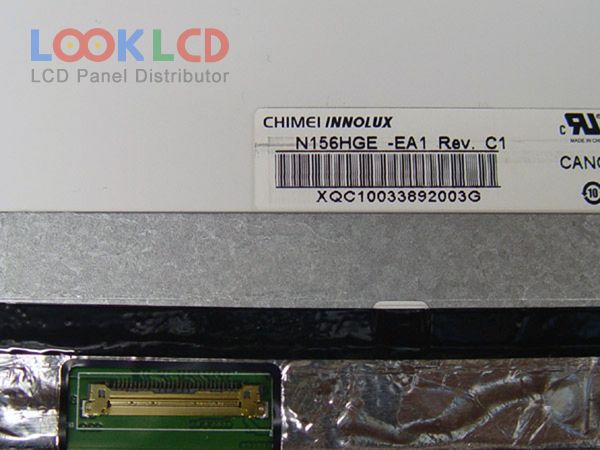

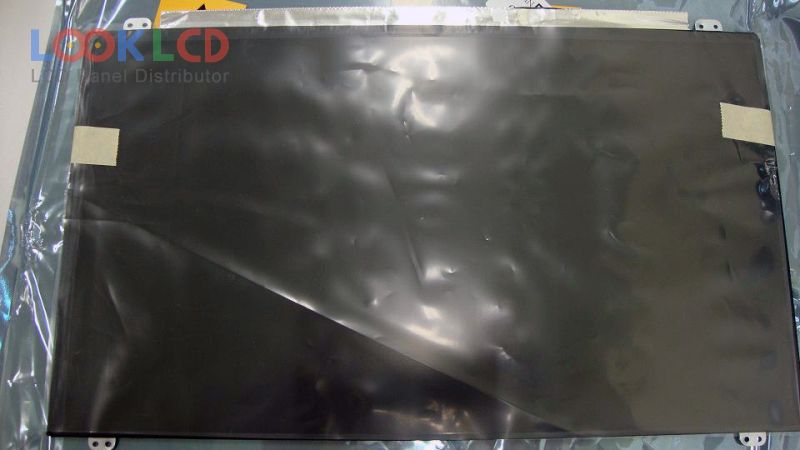

| PartNumber | N156HGE-EA1 |
| Znamka | Innolux |
| Velikost | 15.6 |
| Aplikacija | NBPC |
| Resolucija | 1920×1080 |
| Sestava | LCM |
| Svetlost | 300 |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka plošče | INNOLUX |
| panelni model | N156HGE-EA1 12 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 15.6 inch |
| resolucija | 1920(RGB)×1080 , FHD |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 344.16×193.59 mm |
| oris | 359.5×223.8×3.2 mm |
| slog oblike | Slim (PCBA Flat, Depth ≤3.2mm) |
| površino | Antiglare, Hard coating (3H) |
| svetlost | 300 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193160% |
| odzivni čas | 3/8 (Typ.)(Tr/Td) |
| vidni kot | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 6 stringsWLEDEmbedded (LED Driver) |
| signalni vmesnik | eDP (2 Lanes), 30 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
| LP156WF4-SLB2 | LG Display | 15.6 | 1920×1080 |
| N156BGE-L31 | Innolux | 15.6 | 1366×768 |
| N156HCA-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA2 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EAL Rev.C1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-L11 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LB1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LG1 | Innolux | 15.6 | 1920×1080 |
| B133XTN01.6 HW0A | AUO | 13.3 | 1366×768 |
| B133XW01 V7 | AUO | 13.3 | 1366×768 |
| B141XG03 V2 | AUO | 14.1 | 1024×768 |
| LP141X3 | LG Display | 14.1 | 1024×768 |
| LP145WH1-TLA1 | LG Display | 14.5 | 1366×768 |
| LP150X09-A5K1 | LG Display | 15.0 | 1024×768 |
| LP154WT1-SJA1 | LG Display | 15.4 | 2880×1800 |
| LTN150PG-L03 | Samsung | 15.0 | 1400×1050 |
| M116NWR6 R0 | IVO | 11.6 | 1366×768 |
| N156BGE-E11 | Innolux | 15.6 | 1366×768 |
