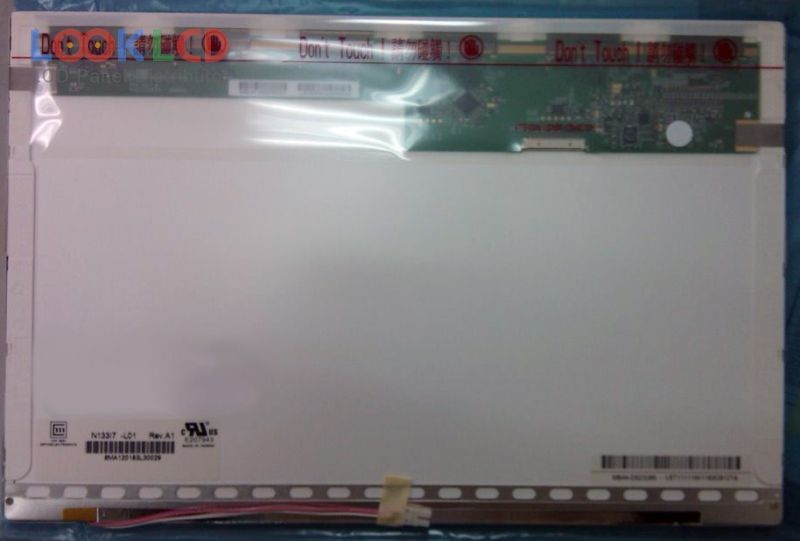

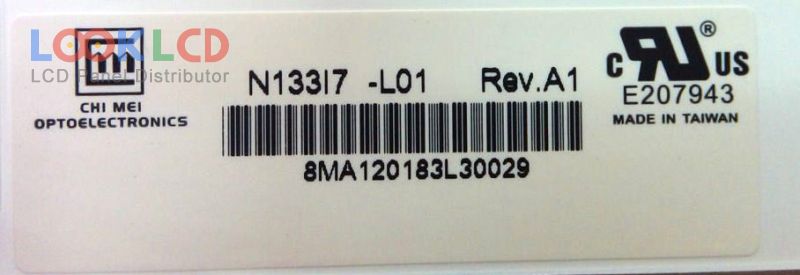

| PartNumber | N133I7-L01 |
| Znamka | Innolux |
| Velikost | 13.3 |
| Aplikacija | NBPC |
| Resolucija | 1280×800 |
| Sestava | LCM |
| Svetlost | 250 |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | CMO |
| panelni model | N133I7-L01 1 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 13.3 inch |
| resolucija | 1280(RGB)×800 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 286.08×178.8 mm |
| oris | 299×195×5.5 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površino | Glare (Haze 0%), Hard coating (2H), Reflection 1.0% (Max.) |
| svetlost | 250 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193148% |
| odzivni čas | 3/7 (Typ.)(Tr/Td) |
| vidni kot | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 1 pcsCCFLWithout Driver |
| signalni vmesnik | LVDS (1 ch, 6-bit), 20 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
