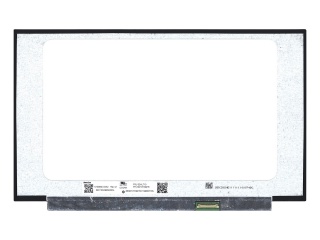

| PartNumber | N133BGA-EA2 |
| Znamka | Innolux |
| Velikost | 13.3 |
| Aplikacija | Laptop |
| Resolucija | 1366×768 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka plošče | Innolux |
| panelni model | N133BGA-EA2 (CMN1394) 6 Compatible |
| velikost plošče | 13.3" |
| vrsta plošče | a-Si TFT-LCD, LCM |
| resolucija | 1366(RGB)×768, WXGA, 118PPI |
| slikovnih pik | RGB Vertical Stripe |
| prikazno območje | 293.83(W)×165.2(H) mm |
| odprtina okvirja | - |
| velikost obrisa | 300.26(W)×187.27(H) ×3(D) mm |
| površino | Antiglare, Hard coating (3H) |
| svetlost | 220 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) (TM) |
| vidni kot | 45/45/20/45 (Typ.)(CR≥10) |
| način prikaza | TN, Normally White, Transmissive |
| najboljši pogled na | 6 o'clock |
| odzivni čas | 3/7 (Typ.)(Tr/Td) |
| barve zaslona | 262K 47% NTSC |
| tip svetilke | WLED , 15K hours , With LED Driver |
| pogostost | 60Hz |
| zaslon na dotik | Without |
| slog oblike | Slim (PCBA Flat, T≤3.2mm) |
| aplikacija | Laptop |
| signalni vmesnik | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| vhodna napetost | 3.3V (Typ.) |
| okolju | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
