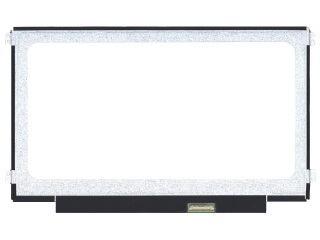

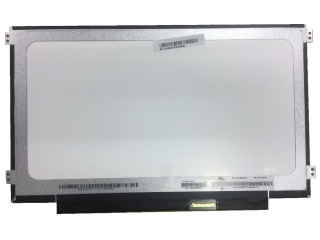

| PartNumber | N116BCA-EA1 |
| Znamka | Innolux |
| Velikost | 11.6 |
| Aplikacija | Laptop Industrial |
| Resolucija | 1366×768 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 800:1 |
| Barve | 262K |
| Osvetlitev ozadja | 10S2P |
| Vmesnik | eDP |
| znamka plošče | Innolux |
| velikost plošče | 11.6" |
| resolucija | 1366(RGB)×768, WXGA, 135PPI |
| prikazno območje | 256.125(W)×144(H) mm |
| velikost obrisa | 278(W)×168(H) ×3(D) mm |
| svetlost | 250 cd/m² (Typ.) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| najboljši pogled na | Symmetry |
| barve zaslona | 262K 45% NTSC |
| pogostost | 60Hz |
| slog oblike | Slim (PCBA Flat, T≤3.2mm) |
| signalni vmesnik | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| vhodna napetost | 3.3V (Typ.) |
| okolju | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| panelni model | N116BCA-EA1 (CMN1138) |
| vrsta plošče | a-Si TFT-LCD , LCM |
| slikovnih pik | RGB Vertical Stripe |
| odprtina okvirja | - |
| površino | Antiglare, Hard coating (3H) |
| kontrastno razmerje | 800:1 (Typ.) (TM) |
| način prikaza | AAS, Normally Black, Transmissive |
| odzivni čas | 14/11 (Typ.)(Tr/Td) |
| tip svetilke | 10S2P WLED , 15K hours , With LED Driver |
| zaslon na dotik | Without |
| aplikacija | Laptop Industrial |
