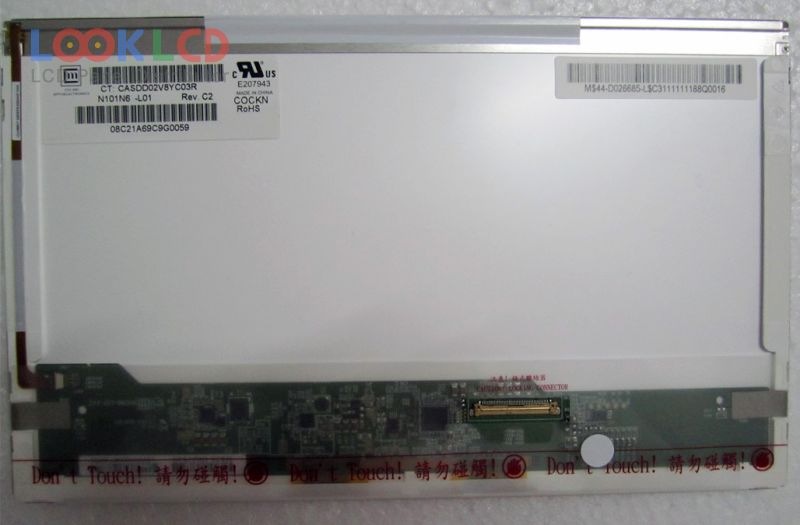

| PartNumber | N101N6-L01 |
| Znamka | Innolux |
| Velikost | 10.1 |
| Aplikacija | NOPC |
| Resolucija | 1024×576 |
| Sestava | LCM |
| Svetlost | 200 |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | CMO |
| panelni model | N101N6-L01 5 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 10.1 inch |
| resolucija | 1024(RGB)×576 , WSVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 222.72×125.28 mm |
| oris | 235×143×5.2 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površino | Antiglare, Hard coating (3H) |
| svetlost | 200 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 3/7 (Typ.)(Tr/Td) |
| vidni kot | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 9S3PWLEDEmbedded (LED Driver) |
| signalni vmesnik | LVDS (1 ch, 6-bit), 40 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NOPC |
