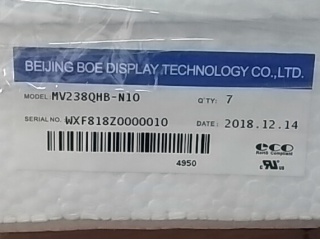

| PartNumber | MV238QHB-N10 |
| Znamka | BOE |
| Velikost | 23.8 |
| Aplikacija | Desktop Monitor |
| Resolucija | 2560×1440 |
| Sestava | a-Si TFT-LCD, CELL |
| Svetlost | |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | No |
| Vmesnik | LVDS |
| znamka plošče | BOE |
| panelni model | MV238QHB-N10 |
| velikost plošče | 23.8" |
| vrsta plošče | a-Si TFT-LCD, CELL |
| resolucija | 2560(RGB)×1440, Quad-HD, 123PPI |
| slikovnih pik | RGB Vertical Stripe |
| prikazno območje | 526.848(W)×296.352(H) mm |
| odprtina okvirja | - |
| velikost obrisa | 534.84(W)×308.16(H) ×1.32(D) mm |
| površino | Antiglare (Haze 25%), Hard coating (3H) |
| svetlost | 0 cd/m² |
| kontrastno razmerje | 1000:1 (Typ.) (TM) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| način prikaza | ADS, Normally Black, Transmissive |
| najboljši pogled na | Symmetry |
| odzivni čas | 14 (Typ.)(G to G) |
| globina stekla | 0.50+0.50 mm |
| transmisivnost | - |
| barve zaslona | 16.7M 100% sRGB |
| tip svetilke | No B/L |
| pogostost | 60Hz |
| zaslon na dotik | Without |
| voznik ic | COF Built-in 8 source chips |
| teža plošče | TBD |
| aplikacija | Desktop Monitor |
| signalni vmesnik | LVDS (4 ch, 8-bit) , 70 pins Connector |
| vhodna napetost | 5.0V (Typ.) |
| okolju | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
