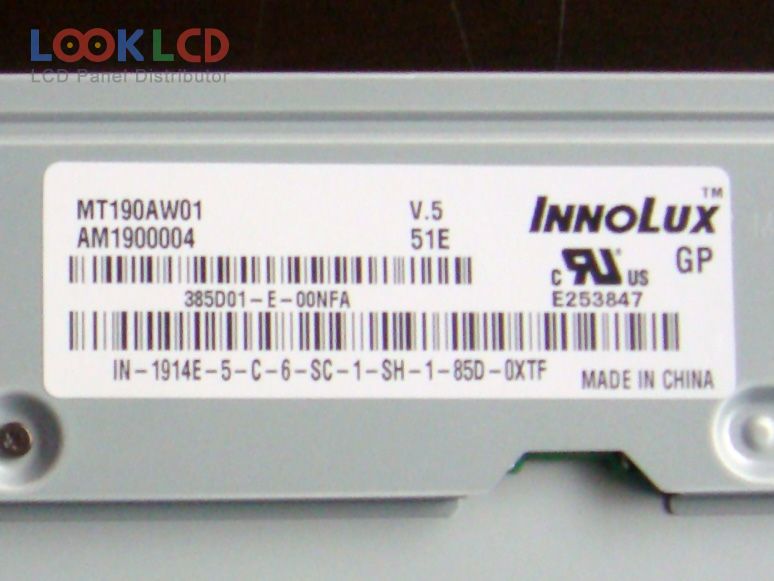

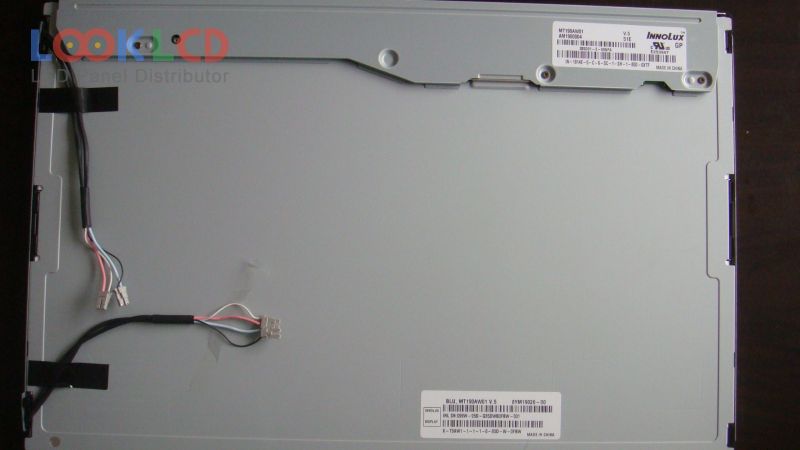

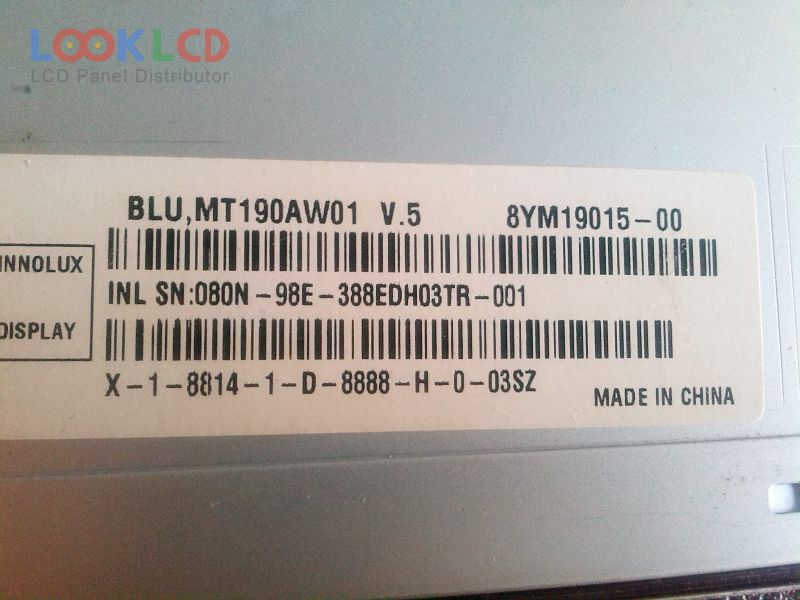

| PartNumber | MT190AW01 V.5 |
| Znamka | Innolux |
| Velikost | 19.0 |
| Aplikacija | DMPC |
| Resolucija | 1440×900 |
| Sestava | LCM |
| Svetlost | 300 |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | INNOLUX |
| panelni model | MT190AW01 V.5 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 19.0 inch |
| resolucija | 1440(RGB)×900 , WXGA+ |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 410.4×256.5 mm |
| oris | 427.2×277.4×16.5 mm |
| površino | Antiglare (Haze 25%), Hard coating (3H) |
| svetlost | 300 cd/m² (Typ.) |
| kontrastno razmerje | 1000:1 (Typ.) |
| barve zaslona | 16.7M (6-bit + Hi-FRC), CIE193174% |
| odzivni čas | 1.5/3.5 (Typ.)(Tr/Td) |
| vidni kot | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 4 pcsCCFLWithout Driver |
| signalni vmesnik | LVDS (2 ch, 8-bit), 30 pins |
| vhodna napetost | 5.0V (Typ.) |
| aplikacija | DMPC |
