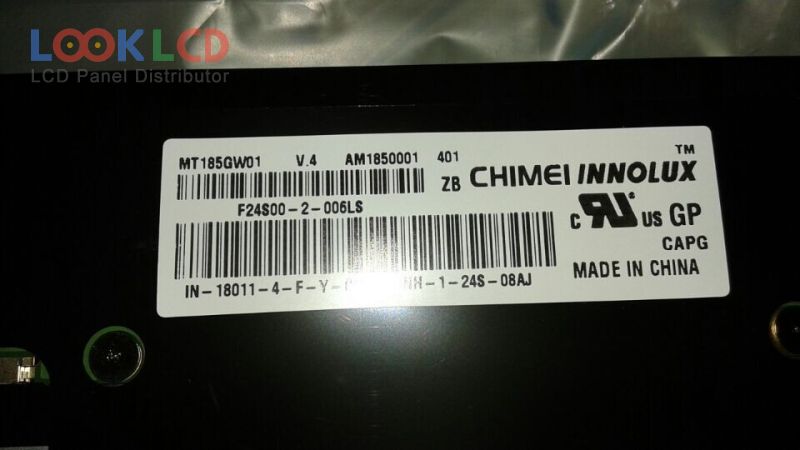

| PartNumber | MT185GW01 V.4 |
| Znamka | Innolux |
| Velikost | 18.5 |
| Aplikacija | DMPC |
| Resolucija | 1366×768 |
| Sestava | LCM |
| Svetlost | 250 |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | CHIMEI INNOLUX |
| panelni model | MT185GW01 V.4 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 18.5 inch |
| resolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 409.8×230.4 mm |
| oris | 430.37×254.6×10.25 mm |
| površino | Antiglare (Haze 25%), Hard coating (3H) |
| svetlost | 250 cd/m² (Typ.) |
| kontrastno razmerje | 1000:1 (Typ.) |
| barve zaslona | 16.7M (6-bit + Hi-FRC), CIE193170% |
| odzivni čas | 1.5/3.5 (Typ.)(Tr/Td) |
| vidni kot | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 14S6PWLEDWithout Driver |
| signalni vmesnik | LVDS (1 ch, 8-bit), 30 pins |
| vhodna napetost | 5.0V (Typ.) |
| aplikacija | DMPC |
