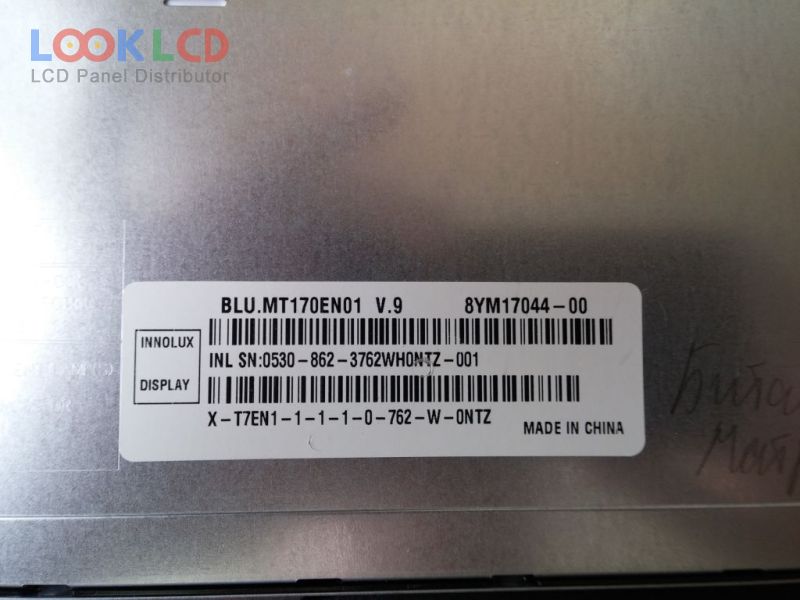

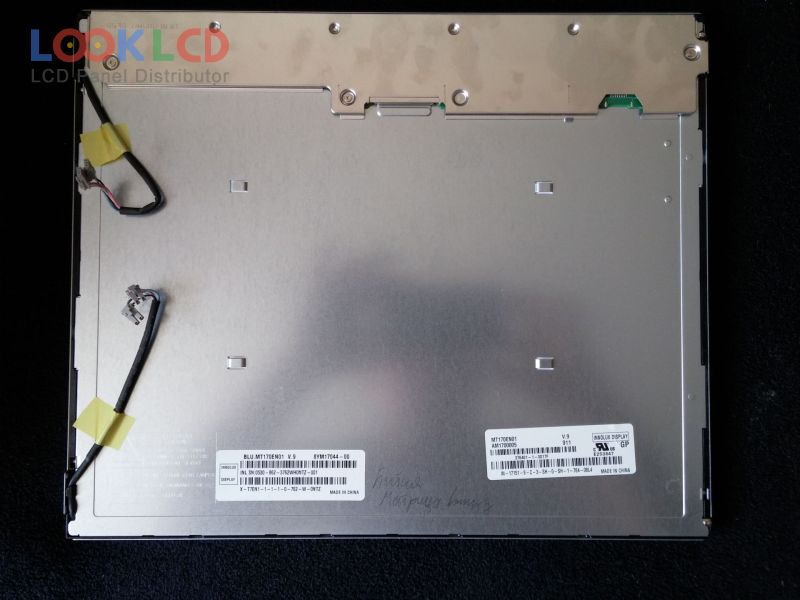

| PartNumber | MT170EN01 V.9 |
| Znamka | Innolux |
| Velikost | 17.0 |
| Aplikacija | DMPC |
| Resolucija | 1280×1024 |
| Sestava | LCM |
| Svetlost | 300 |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | INNOLUX |
| panelni model | MT170EN01 V.9 5 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 17.0 inch |
| resolucija | 1280(RGB)×1024 , SXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 337.92×270.336 mm |
| oris | 358.5×296.5×17.5 mm |
| površino | Antiglare (Haze 25%), Hard coating (3H) |
| svetlost | 300 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) |
| barve zaslona | 16.7M (6-bit + Hi-FRC), CIE193172% |
| odzivni čas | 1/4 (Typ.)(Tr/Td) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 4 pcsCCFLWithout Driver |
| signalni vmesnik | LVDS (2 ch, 8-bit), 30 pins |
| vhodna napetost | 5.0V (Typ.) |
| aplikacija | DMPC |
| HSD170ME13-A04 | HannStar | 17.0 | 1280×1024 |
| HSD170ME13-A05 | HannStar | 17.0 | 1280×1024 |
| LM170E03-TLJ5 | LG Display | 17.0 | 1280×1024 |
| LTM170E6-L03 | Samsung | 17.0 | 1280×1024 |
| LTN170CT08-L01 | Samsung | 17.0 | 1920×1200 |
| LTN170U1-L02 | Samsung | 17.0 | 1920×1200 |
| MT170EN01 V.1 | Innolux | 17.0 | 1280×1024 |
| MT170EN01 V.9 | Innolux | 17.0 | 1280×1024 |
| MT170EN01 V.C | Innolux | 17.0 | 1280×1024 |
| SVA170SX01TB | SVA-NEC | 17.0 | 1280×1024 |
| HSD190ME12-A02 | HannStar | 19.0 | 1280×1024 |
| HT15X15-D01 | HYDIS | 15.0 | 1024×768 |
| LM201WE2-SLA1 | LG Display | 20.1 | 1680×1050 |
| LM240WU2-SLB1 | LG Display | 24.0 | 1920×1200 |
| LTM181E3-P01 | Samsung | 18.1 | 1280×1024 |
| LTM190E4-L03 | Samsung | 19.0 | 1280×1024 |
| M156B1-L02 | Innolux | 15.6 | 1366×768 |
| M185B1-L02 | Innolux | 18.5 | 1366×768 |
| M185XW01 V1 | AUO | 18.5 | 1366×768 |
| MV236FHB-N10 | BOE | 23.6 | 1920×1080 |
