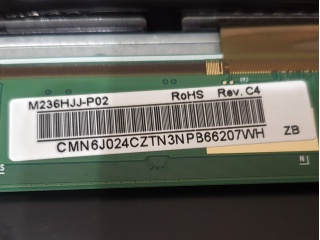

| PartNumber | M236HJJ-P02 Rev.C4 |
| Znamka | Innolux |
| Velikost | 23.6 |
| Aplikacija | Desktop Monitor |
| Resolucija | 1920×1080 |
| Sestava | a-Si TFT-LCD, CELL |
| Svetlost | |
| CR | 3000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | No |
| Vmesnik | |
| znamka | Innolux |
| model | M236HJJ-P02 Rev.C4 |
| velikost diagonale | 23.6 inch |
| vrsta | a-Si TFT-LCD, CELL |
| slikovnih pik | 1920(RGB)×1080 [FHD] 93PPI |
| konfiguracijo | RGB Vertical Stripe |
| aktivno območje | 521.28(H)×293.22(V) mm |
| obris dim. | 534.28(H)×306.252(V) mm |
| območje okvirja | - |
| zdravljenje | Antiglare (Haze 25%), Hard coating (3H) |
| svetilnost | 0 cd/m² |
| kontrastno razmerje | 3000:1 (Typ.) (TM) |
| smer pogleda | Symmetry |
| odzivni čas | 20/5 (Typ.)(Tr/Td) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| način delovanja | Super MVA, Normally Black, Transmissive |
| debelina plošče | - |
| prepustnost | 4.8% (Typ.)(with Polarizer) |
| podpira barvo | 16.7M 72% NTSC |
| Izvor svetlobe | No B/L |
| utež | TBD |
| namenjen za | Desktop Monitor |
| hitrost sličic | 60Hz |
| plošča na dotik | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
