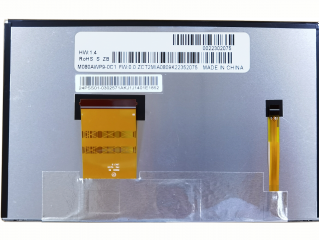

| PartNumber | M080AWP9 R0 |
| Znamka | IVO |
| Velikost | 8.0 |
| Aplikacija | Automotive Display |
| Resolucija | 800×480 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 700:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | Parallel |
| znamka | IVO |
| model | M080AWP9 R0 |
| velikost diagonale | 8.0 inch |
| vrsta | a-Si TFT-LCD, LCM |
| slikovnih pik | 800(RGB)×480 [WVGA] 115PPI |
| konfiguracijo | RGB Vertical Stripe |
| aktivno območje | 175.2(H)×105.12(V) mm |
| obris dim. | 186.5(H)×117.22(V) ×6.65(D) mm |
| območje okvirja | 177.4(H)×107.32(V) mm |
| zdravljenje | Antiglare |
| svetilnost | 750 cd/m² (Typ.) |
| kontrastno razmerje | 700:1 (Typ.) (TM) |
| smer pogleda | - |
| odzivni čas | 13 (Typ.)(Tr+Td) |
| vidni kot | 70/70/50/70 (Typ.)(CR≥10) |
| način delovanja | TN, Normally White, Transmissive |
| podpira barvo | 262K 70% NTSC |
| Izvor svetlobe | WLED [7S3P] , 30K hours , W/O Driver |
| utež | 195/215g (Typ./Max.) |
| namenjen za | Automotive Display |
| hitrost sličic | 60Hz |
| plošča na dotik | Without |
| tip vmesnika | Parallel RGB (1 ch, 6-bit) , 60 pins FPC |
| napajanje | 3.3/10.6/22/-7.0V (Typ.)(VCC/VDDA/VGH/VGL) |
| okolju | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
