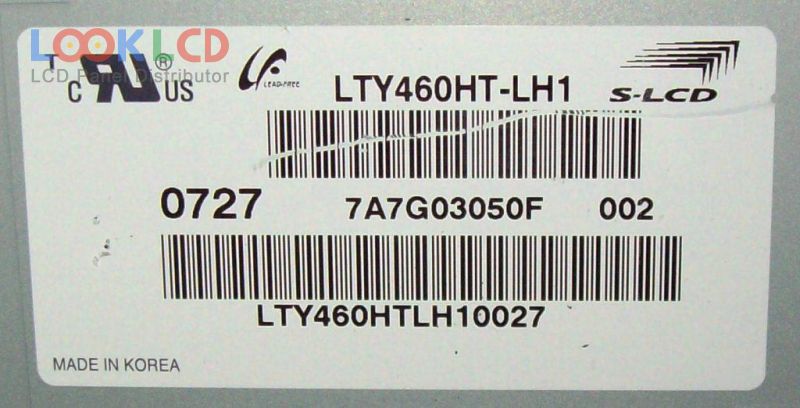

| PartNumber | LTY460HT-LH1 |
| Znamka | Samsung |
| Velikost | 46 |
| Aplikacija | LCTV |
| Resolucija | 1920×1080 |
| Sestava | LCM |
| Svetlost | 500 |
| CR | 1700:1 |
| Barve | 1.07B |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | S-LCD |
| panelni model | LTY460HT-LH1 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 46 inch |
| resolucija | 1920(RGB)×1080 , FHD |
| način prikaza | SPVA, Normally Black, Transmissive |
| aktivno območje | 1018.08×572.67 mm |
| oris | 1083×627×57.1 mm |
| površino | Hard coating (3H) |
| svetlost | 500 cd/m² (Typ.) |
| kontrastno razmerje | 1700:1 (Typ.) |
| barve zaslona | 1.07B (10-bit), CIE193191% |
| odzivni čas | 10/6 (Typ.)(Tr/Td) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (Balance board) |
| signalni vmesnik | LVDS (2 ch, 8-bit), 51 pins |
| vhodna napetost | 12.0V (Typ.) |
| aplikacija | LCTV |
