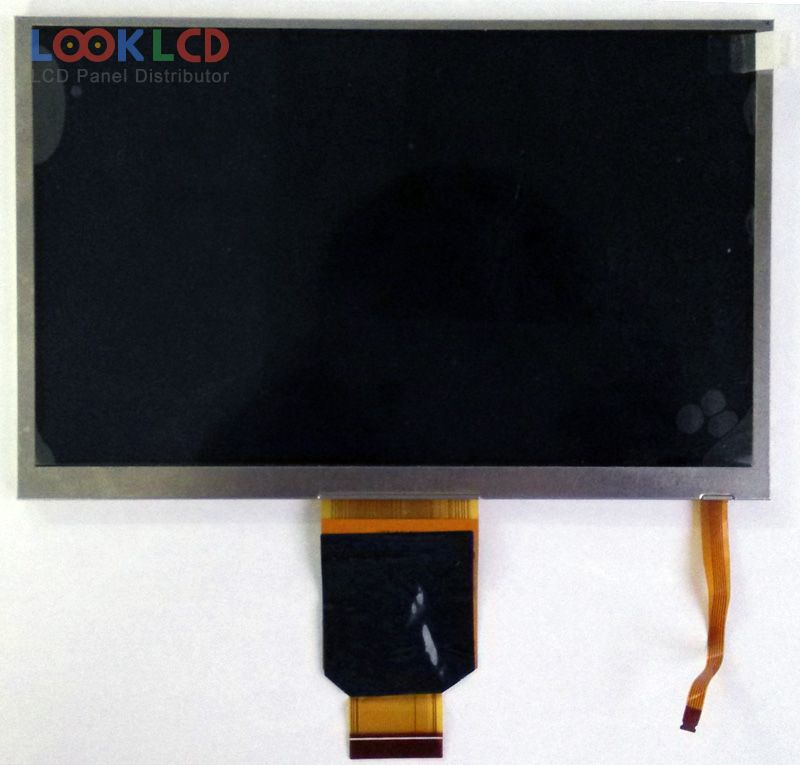

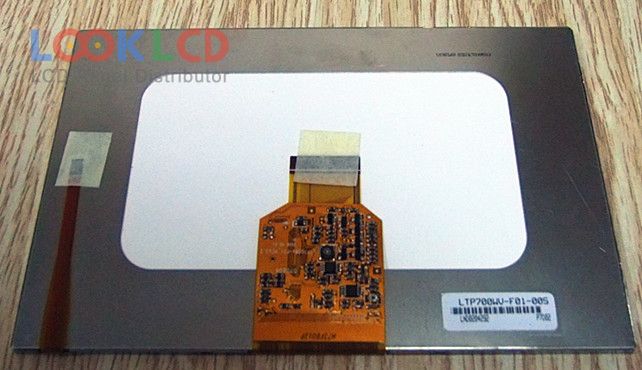

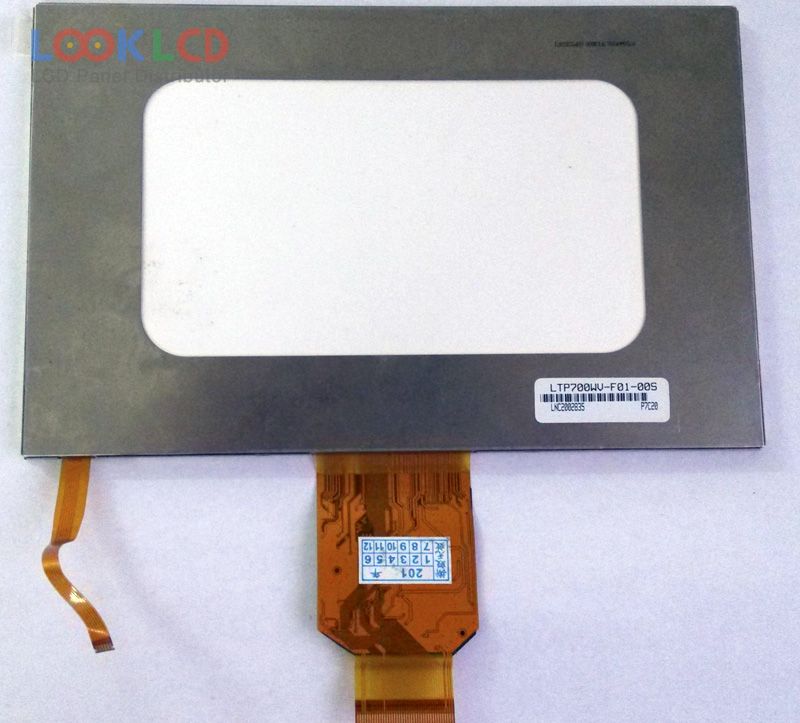

| PartNumber | LTP700WV-F01 |
| Znamka | Samsung |
| Velikost | 7.0 |
| Aplikacija | MP4 |
| Resolucija | 800×480 |
| Sestava | LCM |
| Svetlost | 350 |
| CR | 300:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | SAMSUNG |
| panelni model | LTP700WV-F01 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 7.0 inch |
| resolucija | 800×480(RGB) , WVGA |
| način prikaza | TN, Normally White, TMR |
| aktivno območje | 152.4×91.44 mm |
| oris | 163.2×104×3.6 mm |
| površino | |
| svetlost | 350 cd/m² (Typ.) |
| kontrastno razmerje | 300 : 1 (Typ.) |
| barve zaslona | 16.7M (8-bit) |
| odzivni čas | 22.7 (Typ.)(Tr+Td) |
| vidni kot | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 8S3PWLEDWithout Driver |
| signalni vmesnik | Parallel RGB (1 ch, 8-bit), 40 pins |
| vhodna napetost | 3.3V (Typ.)(VCC) |
| rohs: | |
| aplikacija | MP4 |
| A070VW08 V2 | AUO | 7.0 | 800×480 |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| B070ATN02.0 | AUO | 7.0 | 600×1024 |
| CLAA070MA0ACW | CPT | 7.0 | 800×600 |
| DLC0700BZG-7 | Other | 7.0 | 800×480 |
| HV070WSA-100 | BOE | 7.0 | 1024×600 |
| LTL070NL01-801 | Samsung | 7.0 | 1024×600 |
| LTP700WV-F01 | Samsung | 7.0 | 800×480 |
| LTP700WV-F02 | Samsung | 7.0 | 800×480 |
| Q07021-701 | Innolux | 7.0 | 800×600 |
| AT070TN83 | Innolux | 7.0 | 800×480 |
| BA070WS1-300 | BOE | 7.0 | 1024×600 |
| CLAA070NP01HXG | CPT | 7.0 | 1024×600 |
| EJ070NA-01F | Innolux | 7.0 | 1024×600 |
| HSD089IFW1-A00 | HannStar | 8.9 | 1024×600 |
| LB070WV4-TD02 | LG Display | 7.0 | 800×480 |
| LB070WV6-TD06 | LG Display | 7.0 | 800×480 |
| LMS700KF05 | Samsung | 7.0 | 800×480 |
| LTG430WQ-F02 | Samsung | 4.3 | 480×272 |
| LW700AT9003 | Innolux | 7.0 | 800×480 |
