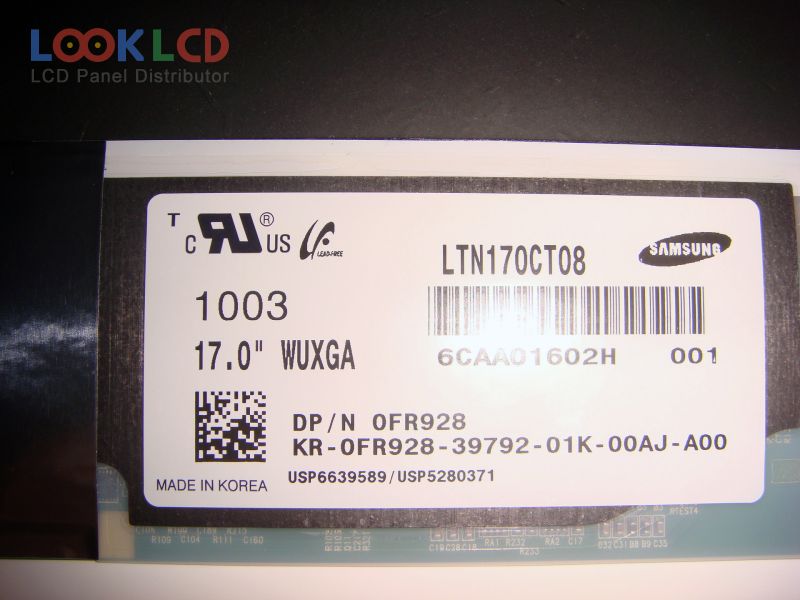

| PartNumber | LTN170CT08-001 |
| Znamka | Samsung |
| Velikost | 17.0 |
| Aplikacija | NBPC |
| Resolucija | 1920×1200 |
| Sestava | LCM |
| Svetlost | 300 |
| CR | 400:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | RGB LED |
| Vmesnik | LVDS |
| znamka plošče | SAMSUNG |
| panelni model | LTN170CT08-001 1 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 17.0 inch |
| resolucija | 1920(RGB)×1200 , WUXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 367.2×229.5 mm |
| oris | 382.2×247.5×6.5 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površino | Antiglare (Haze 25%), Hard coating (4H) |
| svetlost | 300 cd/m² (Typ.) |
| kontrastno razmerje | 400:1 (Min.) |
| barve zaslona | 16.7M (8-bit) |
| odzivni čas | 16 (Typ.)(Tr+Td) |
| vidni kot | 65/65/55/55 (Min.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | RGB LEDEmbedded (LED Driver) |
| signalni vmesnik | LVDS (2 ch, 8-bit), 40 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
| B156XW03 V0 | AUO | 15.6 | 1366×768 |
| HB125WX1-100 | BOE | 12.5 | 1366×768 |
| LP133WH2-SPA1 | LG Display | 13.3 | 1366×768 |
| LP156WH1-TLA3 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TLAA | LG Display | 15.6 | 1366×768 |
| LTD121KX6B | TOSHIBA | 12.1 | 1280×800 |
| LTN150X5-L02 | Samsung | 15.0 | 1024×768 |
| LTN154X3-L01 | Samsung | 15.4 | 1280×800 |
| N141I6-D11 | Innolux | 14.1 | 1280×800 |
| N150P2-L06 | IDTech | 15.0 | 1400×1050 |
