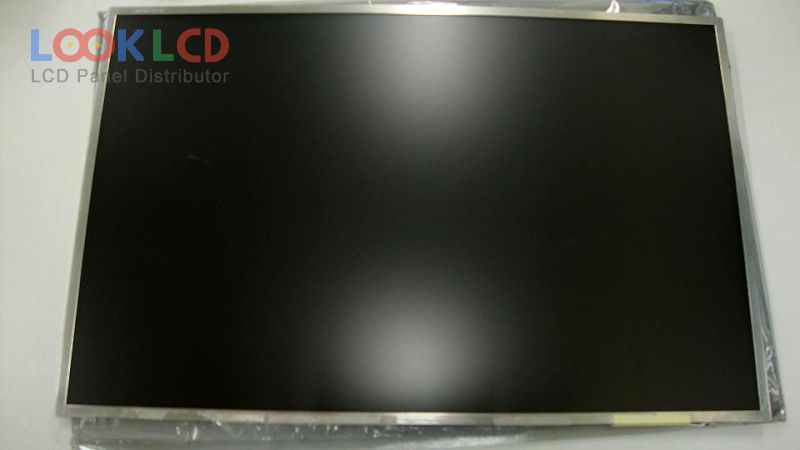

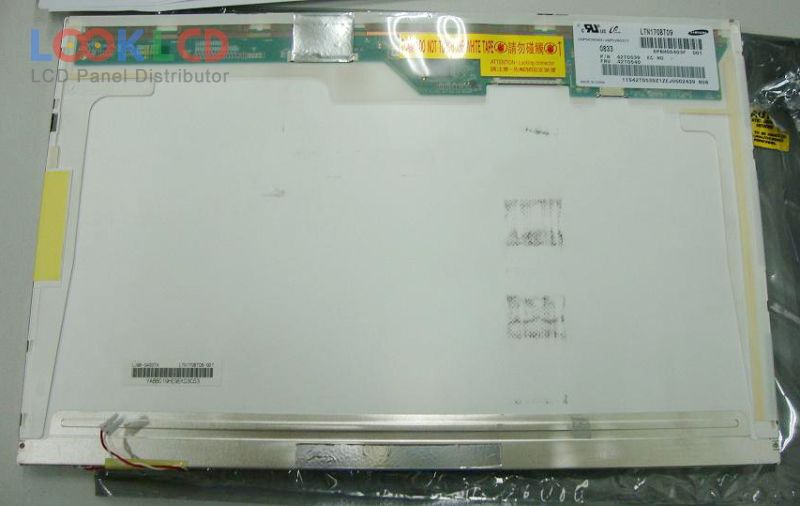

| PartNumber | LTN170BT09-001 |
| Znamka | Samsung |
| Velikost | 17.0 |
| Aplikacija | NBPC |
| Resolucija | 1440×900 |
| Sestava | LCM |
| Svetlost | 200 |
| CR | 600:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | SAMSUNG |
| panelni model | LTN170BT09-001 2 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 17.0 inch |
| resolucija | 1440(RGB)×900 , WXGA+ |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 367.2×229.5 mm |
| oris | 382.2×244.5×7 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površino | Antiglare (Haze 25%), Hard coating (3H) |
| svetlost | 200 cd/m² (Typ.) |
| kontrastno razmerje | 600:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193144% |
| odzivni čas | 16 (Typ.)(Tr+Td) |
| vidni kot | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 1 pcsCCFLWithout Driver |
| signalni vmesnik | LVDS (2 ch, 6-bit), 30 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
