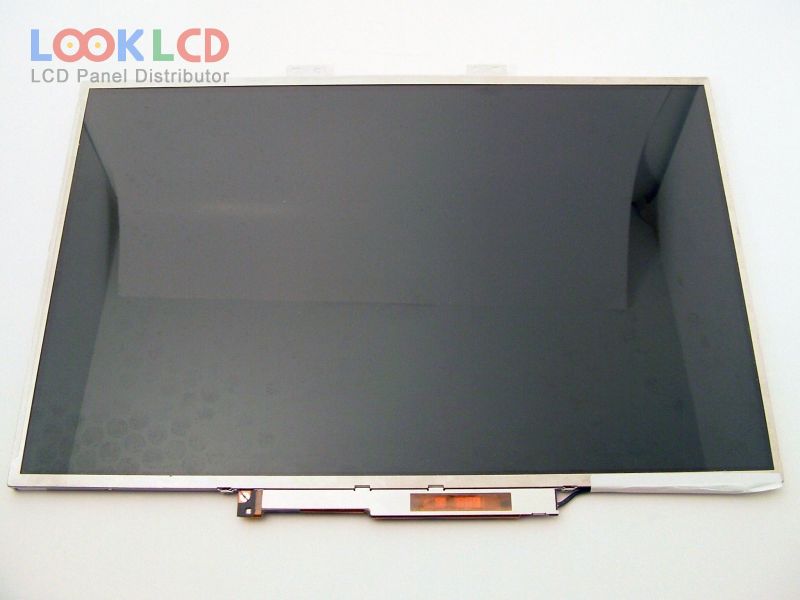

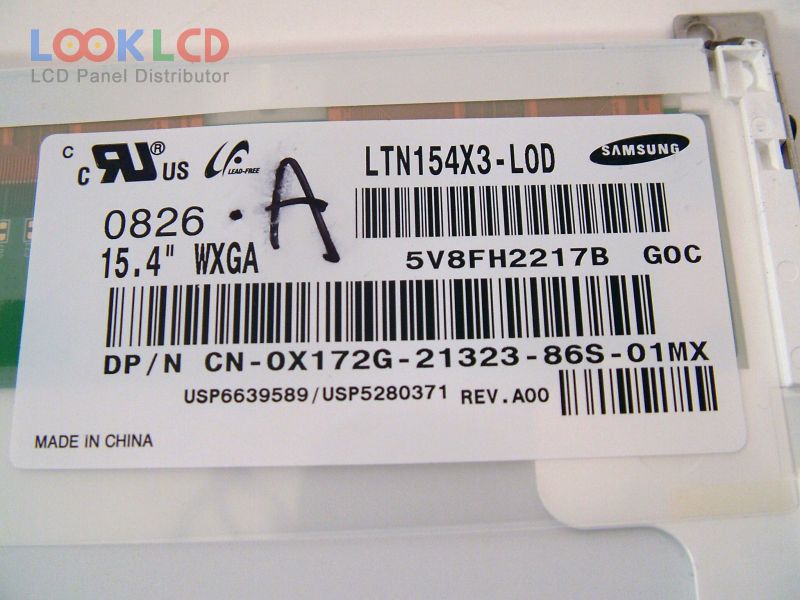

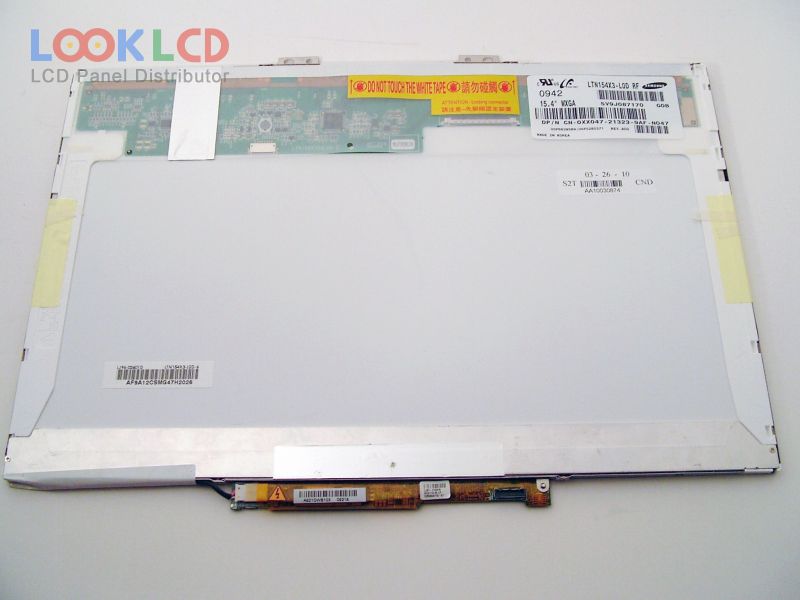

| PartNumber | LTN154X3-L0D-G |
| Znamka | Samsung |
| Velikost | 15.4 |
| Aplikacija | NBPC |
| Resolucija | 1280×800 |
| Sestava | LCM |
| Svetlost | 220 |
| CR | 300:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | SAMSUNG |
| panelni model | LTN154X3-L0D-G |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 15.4 inch |
| resolucija | 1280(RGB)×800 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 331.2×207 mm |
| oris | 344×222×6.5 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površino | Glare (Haze 0%), Hard coating (3H) |
| svetlost | 220 cd/m² (Typ.) |
| kontrastno razmerje | 300:1 (Min.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| vidni kot | 40/40/15/30 (Min.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 1 pcsCCFLEmbedded (Inverter) |
| signalni vmesnik | LVDS (1 ch, 6-bit), 30 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
| LTN154X1-L01 | Samsung | 15.4 | 1280×800 |
| LTN154X1-L03 | Samsung | 15.4 | 1280×800 |
| LTN154X2-L02 | Samsung | 15.4 | 1280×800 |
| LTN154X3-L02 | Samsung | 15.4 | 1280×800 |
| LTN154X3-L03 | Samsung | 15.4 | 1280×800 |
| LTN154X3-L06-J | Samsung | 15.4 | 1280×800 |
| LTN154X3-L09-0 | Samsung | 15.4 | 1280×800 |
| LTN154X3-L0D | Samsung | 15.4 | 1280×800 |
| LTN154X3-L0D-G | Samsung | 15.4 | 1280×800 |
| LTN154X9-L02 | Samsung | 15.4 | 1280×800 |
| LP133WH1-TLA1 | LG Display | 13.3 | 1366×768 |
| LP133WP1-TJA1 | LG Display | 13.3 | 1440×900 |
| LP141WP2-TPA1 | LG Display | 14.1 | 1440×900 |
| LP154WX4-TLB4 | LG Display | 15.4 | 1280×800 |
| LTM15C460F | TOSHIBA | 15.0 | 1024×768 |
| LTN121AP03-001 | Samsung | 12.1 | 1280×800 |
| LTN141AT03-301 | Samsung | 14.1 | 1280×800 |
| LTN154MT02-W01 | Samsung | 15.4 | 1680×1050 |
| LTN160HT03-001 | Samsung | 16.0 | 1920×1080 |
| N121X5-L04 | Innolux | 12.1 | 1024×768 |
