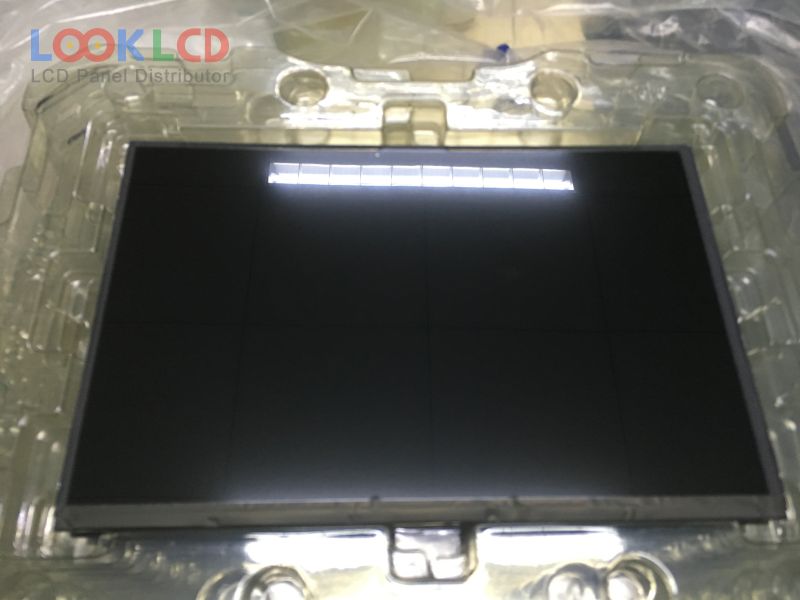

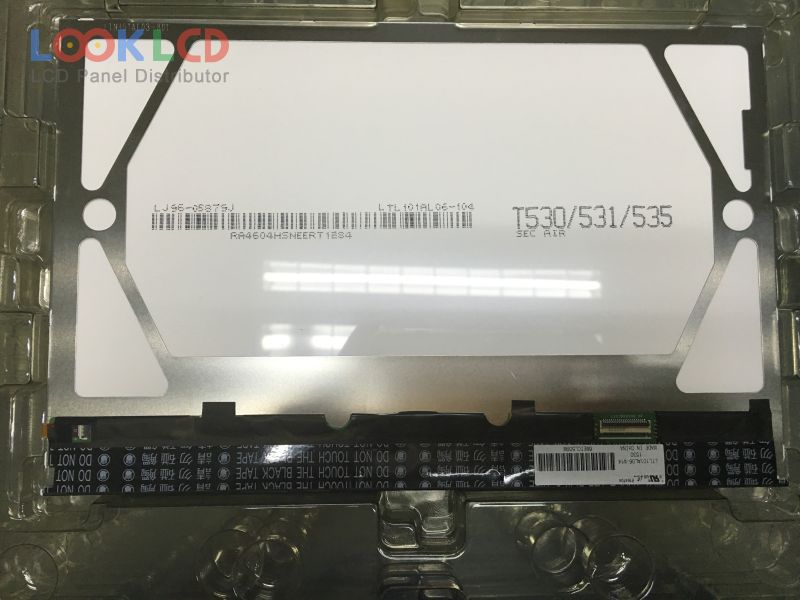

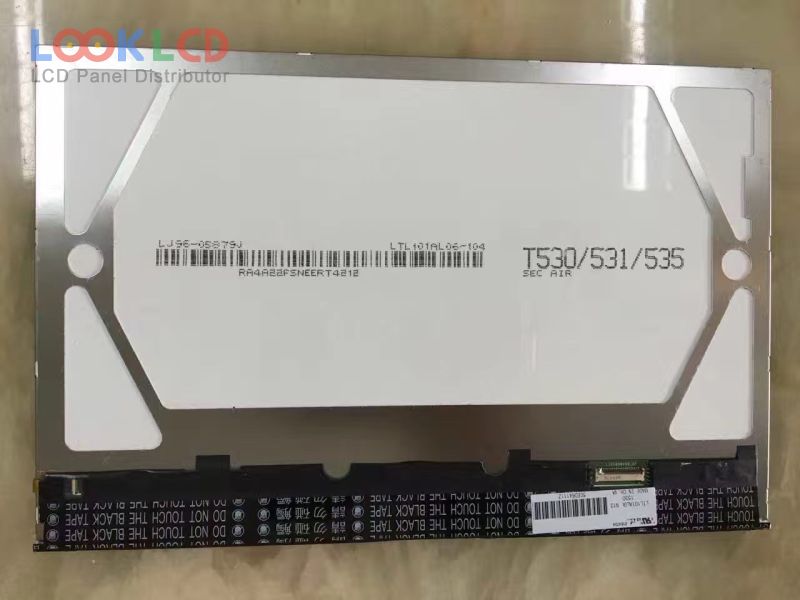

| PartNumber | LTL101AL06-104 |
| Znamka | Samsung |
| Velikost | 10.1 |
| Aplikacija | PAD |
| Resolucija | 1280×800 |
| Sestava | LCM |
| Svetlost | 450 |
| CR | 900:1 |
| Barve | 16.2M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | SAMSUNG |
| panelni model | LTL101AL06-104 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 10.1 inch |
| resolucija | 1280(RGB)×800 , WXGA |
| način prikaza | PLS, Normally Black, Transmissive |
| aktivno območje | 216.96×135.6 mm |
| oris | 228.21×148.86×4.59 mm |
| površino | Hard coating (3H) |
| svetlost | 450 cd/m² (Typ.) |
| kontrastno razmerje | 900:1 (Typ.) |
| barve zaslona | 16.2M (6-bit + FRC), CIE193150% |
| odzivni čas | 30 (Typ.)(Tr+Td) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 4 stringsWLEDWithout Driver |
| signalni vmesnik | LVDS (1 ch, 8-bit), 45 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | PAD |
