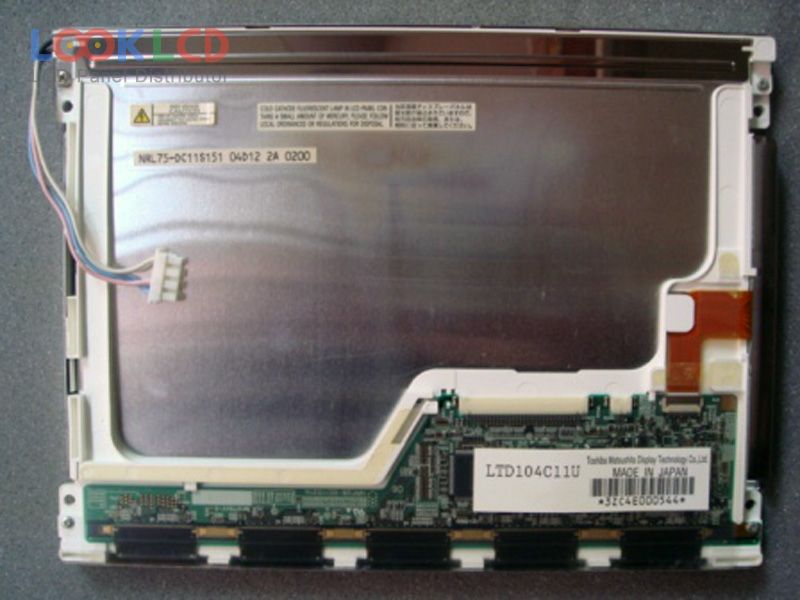

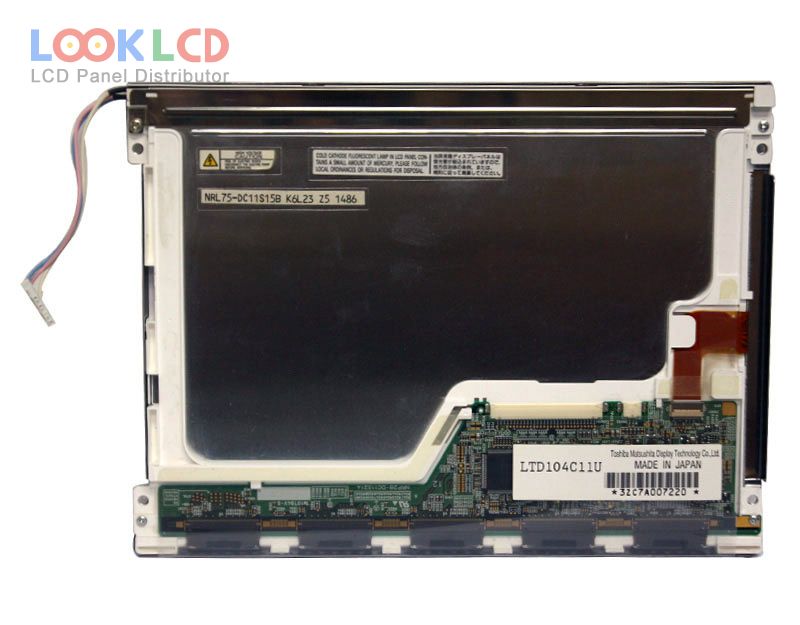

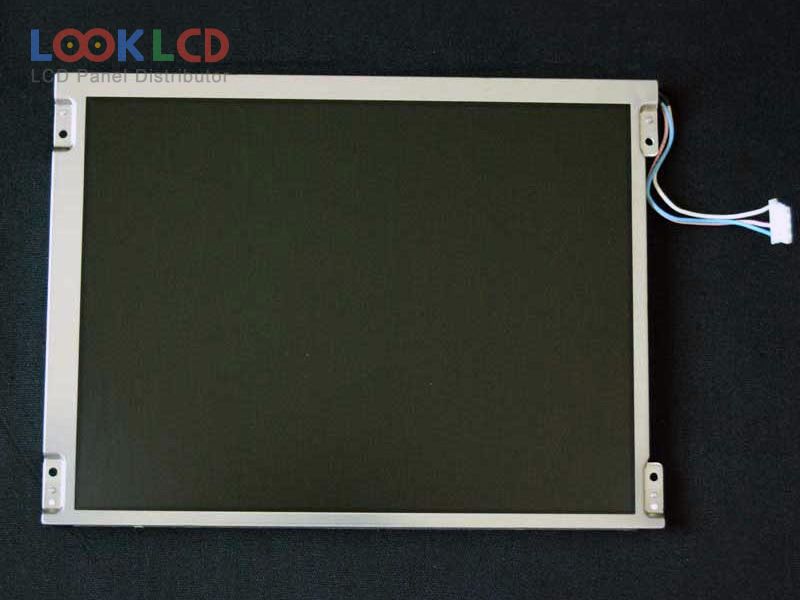

| PartNumber | LTD104C11U |
| Znamka | TOSHIBA |
| Velikost | 10.4 |
| Aplikacija | IA |
| Resolucija | 640×480 |
| Sestava | LCM |
| Svetlost | 400 |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | TTL |
| znamka plošče | Toshiba Matsushita |
| panelni model | LTD104C11U |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 10.4 inch |
| resolucija | 640(RGB)×480 , VGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 211.2×158.4 mm |
| oris | 238.5×177.5×12 mm |
| površino | Antiglare |
| svetlost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 50/50 (Max.)(Tr/Td) |
| vidni kot | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 2 pcsCCFLWithout Driver |
| signalni vmesnik | CMOS (1 ch, 6-bit), 32 pins |
| vhodna napetost | 3.3/5.0V (Typ.)(VDD) |
| aplikacija | IA |
