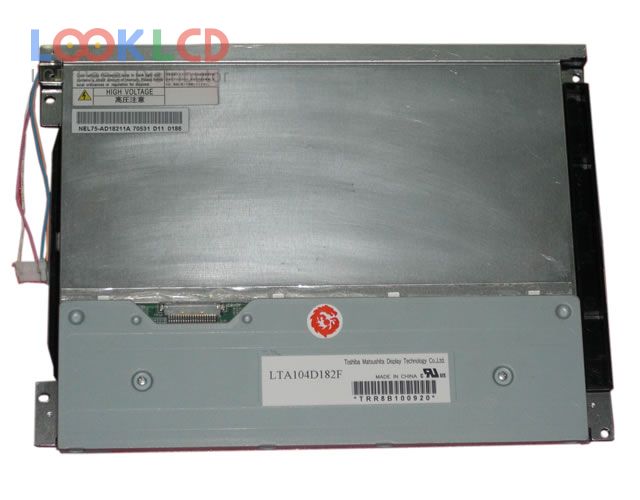

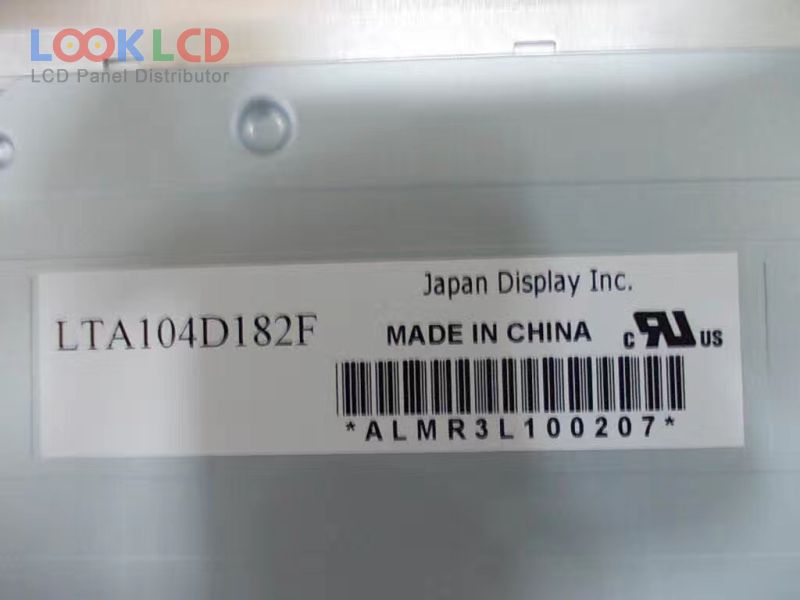

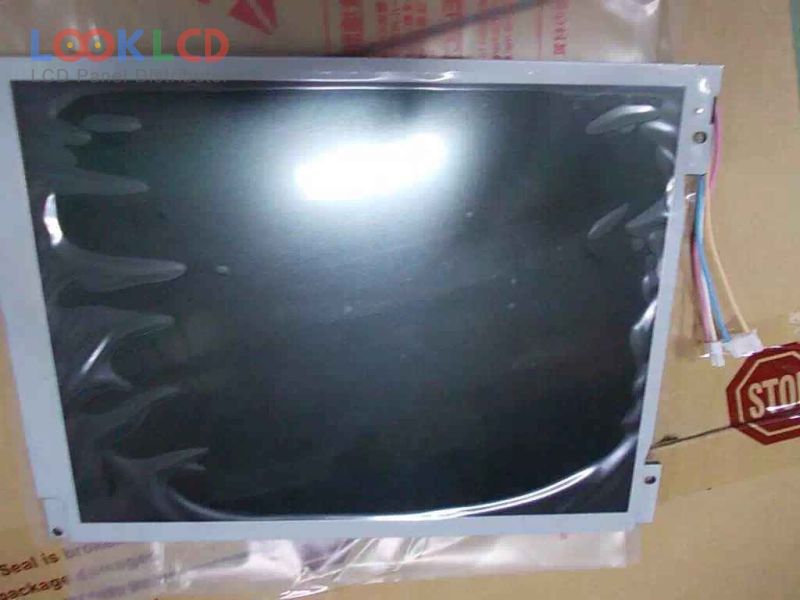

| PartNumber | LTA104D182F |
| Znamka | TOSHIBA |
| Velikost | 10.4 |
| Aplikacija | IA |
| Resolucija | 800×600 |
| Sestava | LCM |
| Svetlost | 400 |
| CR | 450:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | Toshiba Matsushita |
| panelni model | LTA104D182F |
| vrsta plošče | LTPS TFT-LCD , LCM |
| velikost plošče | 10.4 inch |
| resolucija | 800(RGB)×600 , SVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 211.2×158.4 mm |
| oris | 242×178.5 mm |
| površino | |
| svetlost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 450:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 8/17 (Typ.)(Tr/Td) |
| vidni kot | 60/60/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| tip svetilke | 2 pcsCCFLWithout Driver |
| signalni vmesnik | LVDS (1 ch, 6-bit), 20 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | IA |
