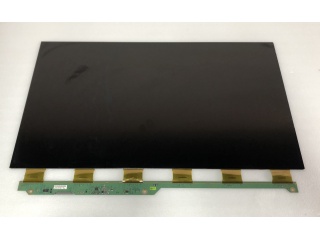

| PartNumber | LSM270HP05-G01 |
| Znamka | SAMSUNG |
| Velikost | 27.0 |
| Aplikacija | Desktop Monitor |
| Resolucija | 1920×1080 |
| Sestava | a-Si TFT-LCD, CELL |
| Svetlost | |
| CR | 3000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | No |
| Vmesnik | LVDS |
| znamka plošče | SAMSUNG |
| panelni model | LSM270HP05-G01 |
| velikost plošče | 27.0" |
| vrsta plošče | a-Si TFT-LCD, CELL |
| resolucija | 1920(RGB)×1080, FHD, 81PPI |
| slikovnih pik | RGB Vertical Stripe |
| prikazno območje | 597.888(W)×336.312(H) mm |
| odprtina okvirja | - |
| velikost obrisa | 608.288(W)×348.037(H) ×1.16(D) mm |
| površino | Antiglare (Haze 25%) |
| svetlost | 0 cd/m² |
| kontrastno razmerje | 3000:1 (Typ.) (TM) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| način prikaza | SPVA, Normally Black, Transmissive |
| najboljši pogled na | Symmetry |
| odzivni čas | 21 (Typ.)(G to G) |
| globina stekla | 0.40+0.40 mm |
| transmisivnost | 4.25% (Typ.)(with Polarizer) |
| barve zaslona | 16.7M 70% NTSC |
| tip svetilke | No B/L |
| pogostost | 60Hz |
| zaslon na dotik | Without |
| voznik ic | COFBuilt-in 6 source chips |
| teža plošče | 560g (Typ.) |
| aplikacija | Desktop Monitor |
| signalni vmesnik | LVDS (2 ch, 8-bit) , 30 pins Connector |
| vhodna napetost | 12.0V (Typ.) |
| okolju | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
