| PartNumber | LQ315T3LZ23 |
| Znamka | SHARP |
| Velikost | 31.5 |
| Aplikacija | LCTV |
| Resolucija | 1366×768 |
| Sestava | LCM |
| Svetlost | 500 |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | SHARP |

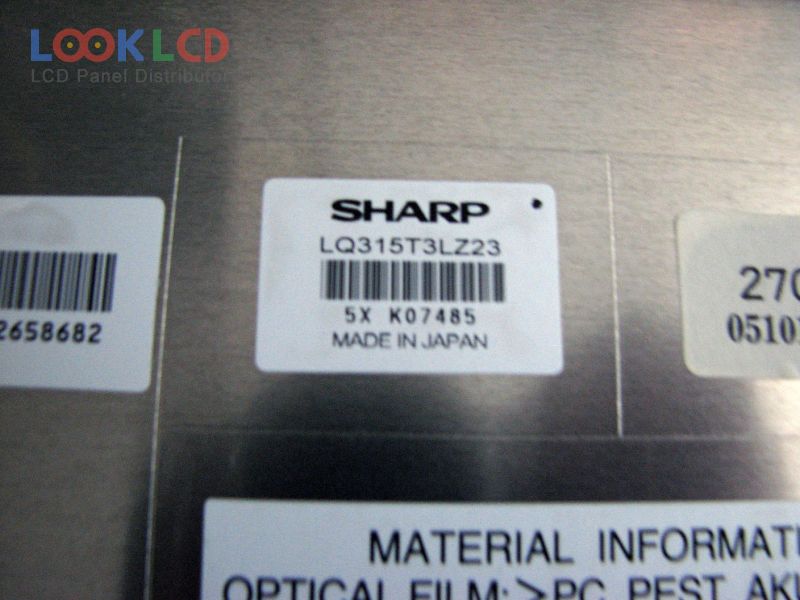

| panelni model | LQ315T3LZ23 |

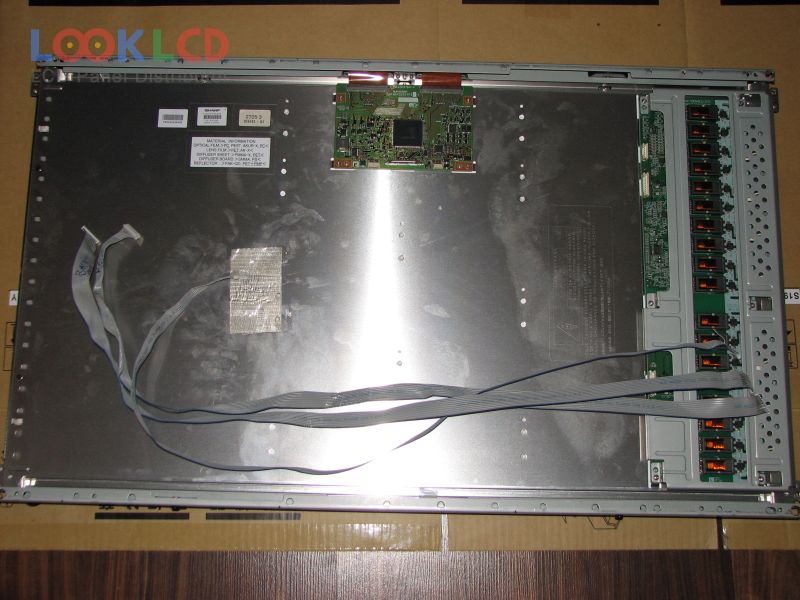

| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 31.5 inch |
| resolucija | 1366(RGB)×768 , WXGA |
| način prikaza | Normally Black, Transmissive |
| aktivno območje | 697.685×392.256 mm |
| oris | 780×450 mm |
| površino | Antiglare (Haze 23%), Hard coating (2H), Antireflection |
| svetlost | 500 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) |
| barve zaslona | 16.7M (8-bit), CIE193173% |
| odzivni čas | 12/12 (Typ.)(Tr/Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |

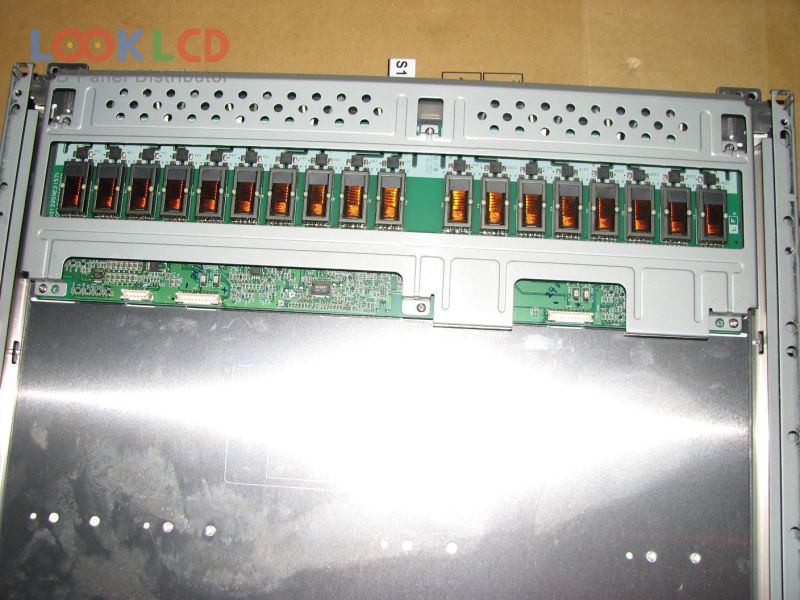

| tip svetilke | 18 pcsCCFLEmbedded (Inverter) |
| signalni vmesnik | LVDS (1 ch, 8-bit), 37 pins |
| vhodna napetost | 5.0V (Typ.) |
| aplikacija | LCTV |
