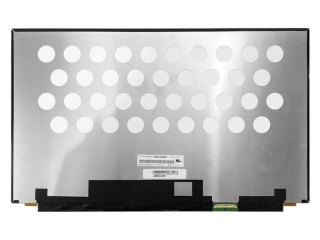

| PartNumber | LQ156D1JX36x |
| Znamka | Sharp |
| Velikost | 15.6 |
| Aplikacija | Laptop |
| Resolucija | 3840×2160 |
| Sestava | Oxide TFT-LCD , LCM |
| Svetlost | |
| CR | 1500:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka | Sharp |
| velikost diagonale | 15.6 inch |
| slikovnih pik | 3840(RGB)×2160 [UHD] 282PPI |
| aktivno območje | 345.6(H)×194.4(V) mm |
| območje okvirja | - |
| svetilnost | 300 cd/m² (Typ.) |
| smer pogleda | Symmetry |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| podpira barvo | 16.7M 100% sRGB |
| slog oblike | Slim (PCBA Flat, T≤3.2mm) |
| hitrost sličic | 60Hz |
| tip vmesnika | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
| napajanje | 3.3V (Typ.) |
| okolju | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
| model | LQ156D1JX36x (SHP1480) |
| vrsta | Oxide TFT-LCD , LCM |
| konfiguracijo | RGB Vertical Stripe |
| obris dim. | 351.9(H)×217.2(V) ×2.75(D) mm |
| zdravljenje | Glare (Haze 0%), Hard coating (3H) |
| kontrastno razmerje | 1500:1 (Typ.) (TM) |
| odzivni čas | 33 (Typ.)(Tr+Td) |
| način delovanja | IPS, Normally Black, Transmissive |
| Izvor svetlobe | WLED , 15K hours , With LED Driver |
| namenjen za | Laptop |
| plošča na dotik | Without |
| B156HTB01.0 | AUO | 15.6 | 1920×1080 |
| B156XTN02.4 | AUO | 15.6 | 1366×768 |
| B156XW02 V0 | AUO | 15.6 | 1366×768 |
| LP156WD1-TLB2 | LG Display | 15.6 | 1600×900 |
| LP156WF4-SLB2 | LG Display | 15.6 | 1920×1080 |
| LQ156D1JW02 | SHARP | 15.6 | 3840×2160 |
| LQ156D1JW04 | SHARP | 15.6 | 3840×2160 |
| LQ156D1JX01 | SHARP | 15.6 | 3840×2160 |
| LQ156D1JX03 | SHARP | 15.6 | 3840×2160 |
| LTN156KT01-001 | Samsung | 15.6 | 1600×900 |
