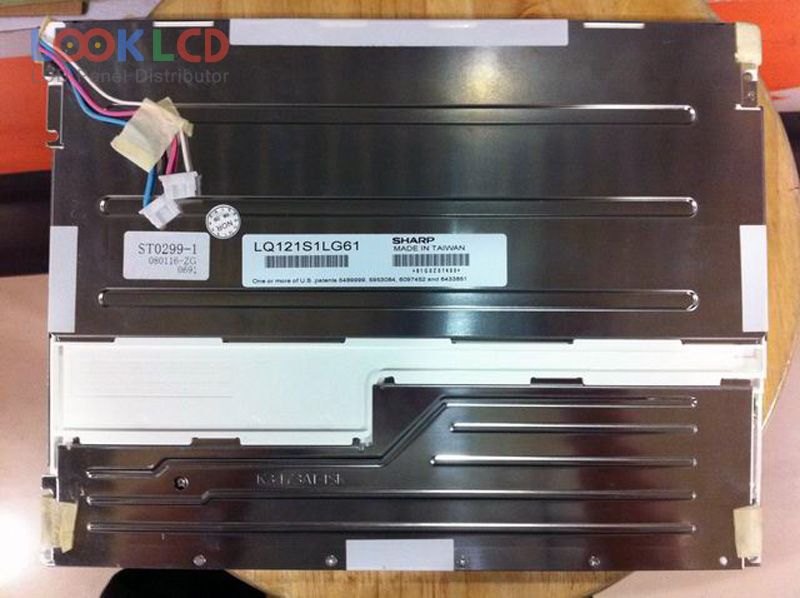

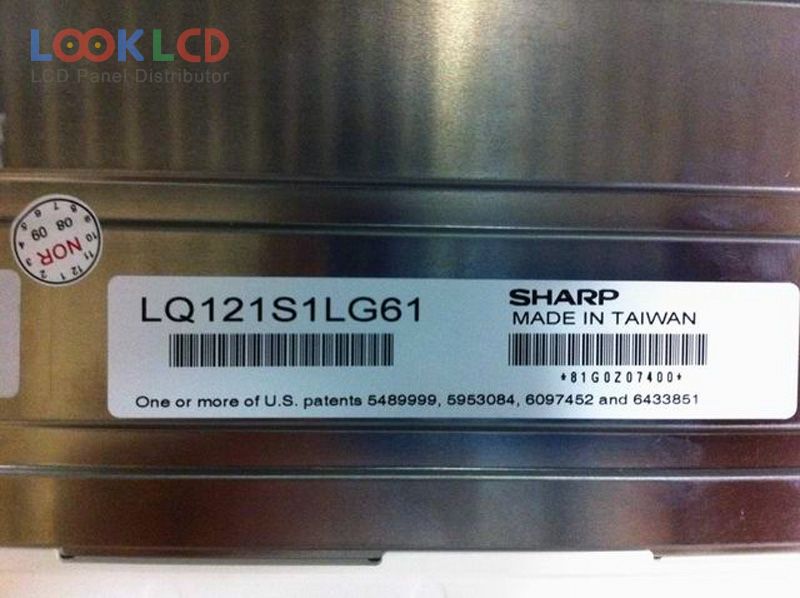

| PartNumber | LQ121S1LG61 |
| Znamka | SHARP |
| Velikost | 12.1 |
| Aplikacija | IA |
| Resolucija | 800×600 |
| Sestava | LCM |
| Svetlost | 450 |
| CR | 600:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | SHARP |
| panelni model | LQ121S1LG61 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 12.1 inch |
| resolucija | 800(RGB)×600 , SVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 246×184.5 mm |
| oris | 276×209×11 mm |
| površino | Antiglare, Hard coating (3H) |
| svetlost | 450 cd/m² (Typ.) |
| kontrastno razmerje | 600:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193145% |
| odzivni čas | 10/25 (Typ.)(Tr/Td) |
| vidni kot | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 2 pcsCCFLWithout Driver |
| signalni vmesnik | LVDS (1 ch, 6-bit), 20 pins |
| vhodna napetost | 3.3/5.0V (Typ.) |
| aplikacija | IA |
| LQ121K1LG52 | SHARP | 12.1 | 1280×800 |
| LQ121K1LG53 | SHARP | 12.1 | 1280×800 |
| LQ121S1DG11 | SHARP | 12.1 | 800×600 |
| LQ121S1DG21A | SHARP | 12.1 | 800×600 |
| LQ121S1LG51 | SHARP | 12.1 | 800×600 |
| LQ121S1LG55 | SHARP | 12.1 | 800×600 |
| LQ121S1LG61 | SHARP | 12.1 | 800×600 |
| LQ121X1LH22 | SHARP | 12.1 | 1024×768 |
| LQ121X1LH83 | SHARP | 12.1 | 1024×768 |
| LQ121X3LH01 | SHARP | 12.1 | 1024×768 |
| AM-800480LTMQW-W0H | AMPIRE | 5.0 | 800×480 |
| EL160.80.50 ET | Lumineq | 3.5 | 160×80 |
| G070VTN01.0 | AUO | 7.0 | 800×480 |
| G104AGE-L02 | Innolux | 10.4 | 800×600 |
| LB150X02-TL01 | LG Display | 15.0 | 1024×768 |
| LQ150X1LW71N | SHARP | 15.0 | 1024×768 |
| MD400F640PD5 | Panasonic | 9.8 | 640×400 |
| NL6448BC20-20 | NLT | 6.5 | 640×480 |
| NL8048AC19-13 | NLT | 7.0 | 800×480 |
| RGS15128128YR000 | RiTdisplay | 1.5 | 128×128 |
