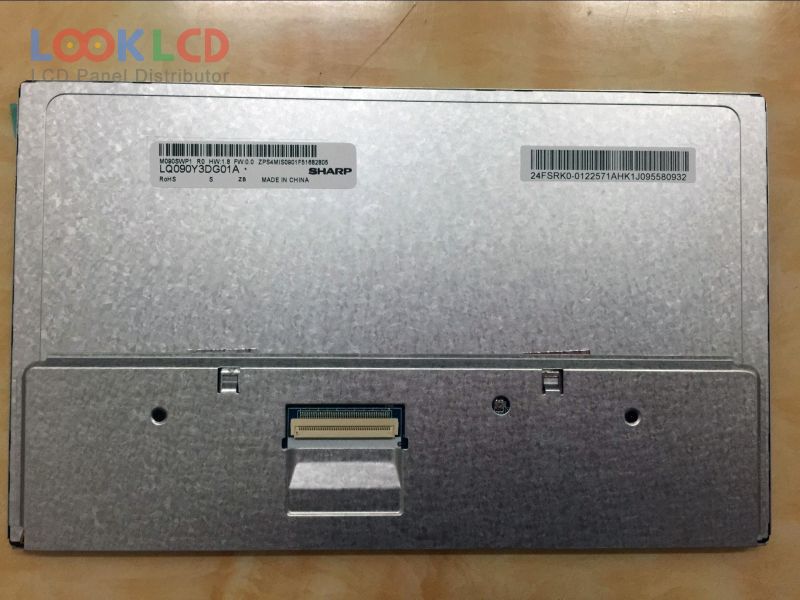

| PartNumber | LQ090Y3DG01A |
| Znamka | SHARP |
| Velikost | 9.0 |
| Aplikacija | DPF |
| Resolucija | 800×480 |
| Sestava | LCM |
| Svetlost | 300 |
| CR | 500:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | SHARP |
| panelni model | LQ090Y3DG01A |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 9.0 inch |
| resolucija | 800(RGB)×480 , WVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 198×111.696 mm |
| oris | 211.1×128.4 mm |
| površino | Antiglare, Hard coating (3H) |
| svetlost | 300 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) |
| barve zaslona | 16.7M (8-bit) |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| vidni kot | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |
| signalni vmesnik | Parallel RGB (1 ch, 8-bit) |
| aplikacija | DPF |
| A061VW01 V0 | AUO | 6.1 | 800×480 |
| A080SN03 V3 | AUO | 8.0 | 800×600 |
| A101VW01 V1 | AUO | 10.1 | 800×480 |
| AT080TN43 | Innolux | 8.0 | 800×600 |
| CLAA070MA0ACW | CPT | 7.0 | 800×600 |
| DLC0700OZG-T-1 | Other | 7.0 | 800×480 |
| LD050WQ1-TD02 | LG Display | 5.0 | 480×272 |
| P64AN2AP08 | E Ink | 6.4 | 320×234 |
| PA079DS4 | E Ink | 7.9 | 480×234 |
| TM070RDH13 | Tianma | 7.0 | 800×480 |
