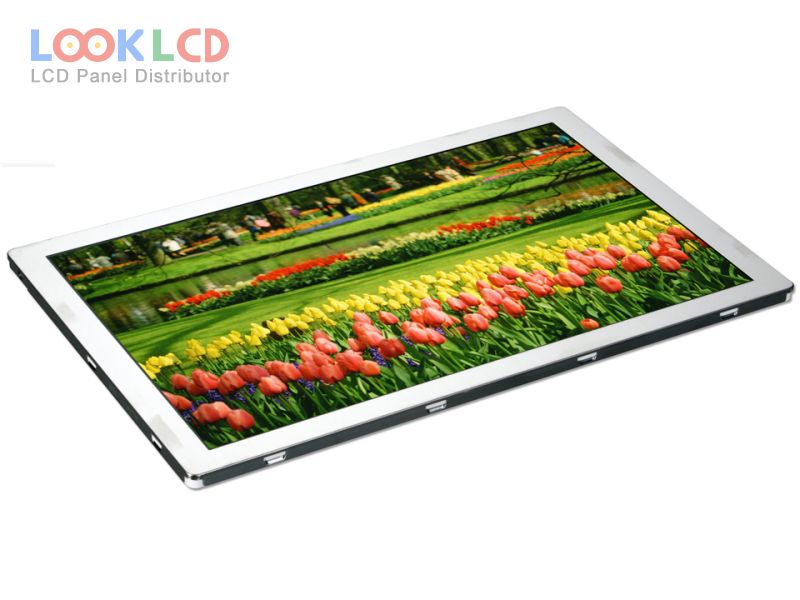

| PartNumber | LQ085Y3DW01 |
| Znamka | SHARP |
| Velikost | 8.5 |
| Aplikacija | IA |
| Resolucija | 800×480 |
| Sestava | LCM |
| Svetlost | 350 |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | SHARP |
| panelni model | LQ085Y3DW01 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 8.5 inch |
| resolucija | 800×480(RGB) , WVGA |
| način prikaza | ASV, Normally Black, Transmissive |
| aktivno območje | 184.8×110.88 mm |
| oris | 210×134 mm |
| površino | Antiglare |
| svetlost | 350 cd/m² (Typ.) |
| kontrastno razmerje | 1000:1 (Typ.) |
| barve zaslona | 16.7M (8-bit) |
| odzivni čas | 35 (Typ.)(Tr+Td) |
| vidni kot | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 9S4PWLEDWithout Driver |
| signalni vmesnik | Parallel RGB (1 ch, 8-bit), 50 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | IA |
