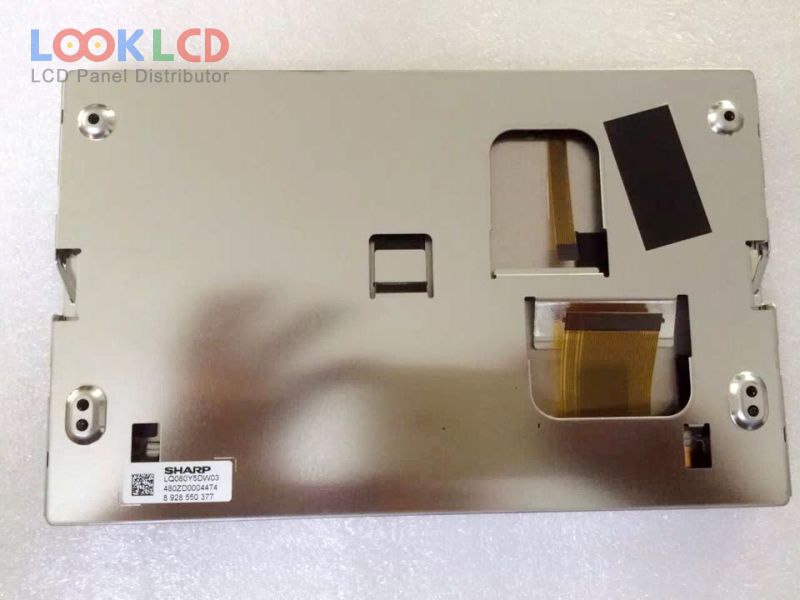

| PartNumber | LQ080Y5DG03 |
| Znamka | SHARP |
| Velikost | 8.0 |
| Aplikacija | CNS |
| Resolucija | 800×480 |
| Sestava | LCM |
| Svetlost | 540 |
| CR | |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | SHARP |
| panelni model | LQ080Y5DG03 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 8.0 inch |
| resolucija | 800(RGB)×480 , WVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 174×104.4 mm |
| oris | 190×120 mm |
| površino | |
| svetlost | 540 cd/m² (Typ.) |
| kontrastno razmerje | |
| barve zaslona | 262K (6-bit), CIE193165% |
| odzivni čas | |
| vidni kot | |
| tip svetilke | WLED |
| signalni vmesnik | Parallel RGB (1 ch, 6-bit) |
| aplikacija | CNS |
