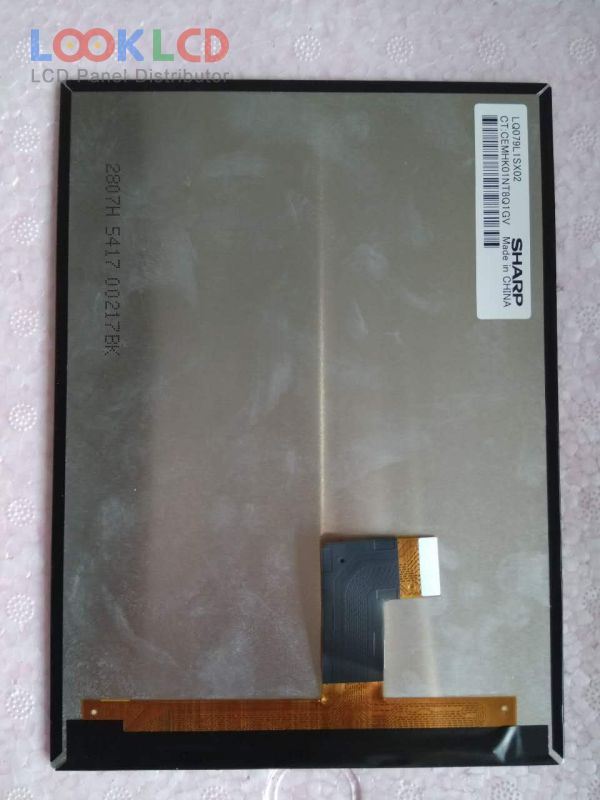

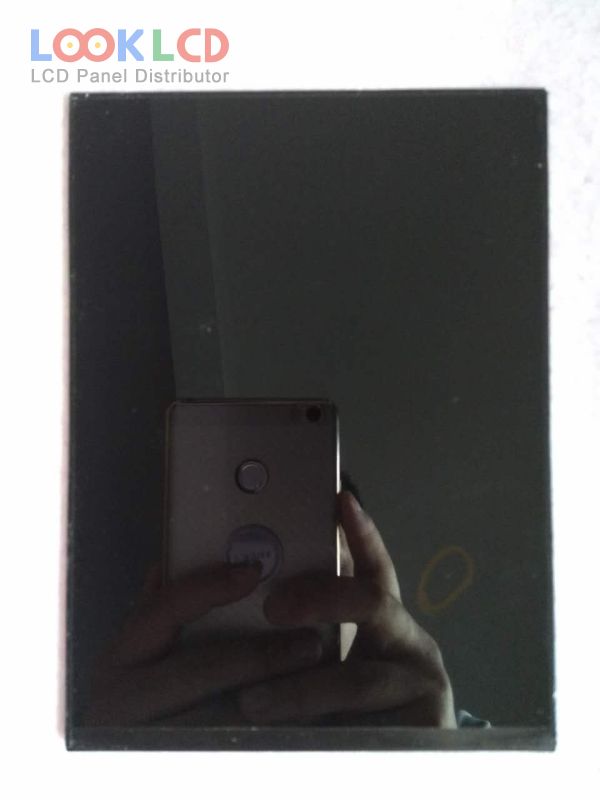

| PartNumber | LQ079L1SX02 |
| Znamka | SHARP |
| Velikost | 7.9 |
| Aplikacija | PAD |
| Resolucija | 1536×2048 |
| Sestava | LCM |
| Svetlost | 450 |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | MIPI |
| znamka plošče | SHARP |
| panelni model | LQ079L1SX02 |
| vrsta plošče | IGZO TFT-LCD , LCM |
| velikost plošče | 7.9 inch |
| resolucija | 1536(RGB)×2048 , QXGA |
| način prikaza | Normally Black, Transmissive |
| aktivno območje | 119.808×159.744 mm |
| oris | 125.55×170.95 mm |
| površino | Clear, Hard coating |
| svetlost | 450 cd/m² (Typ.) |
| kontrastno razmerje | 1000:1 (Typ.) |
| barve zaslona | 16.7M (8-bit), CIE193170% |
| odzivni čas | 35 (Typ.)(Tr+Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 6S4PWLEDWithout Driver |

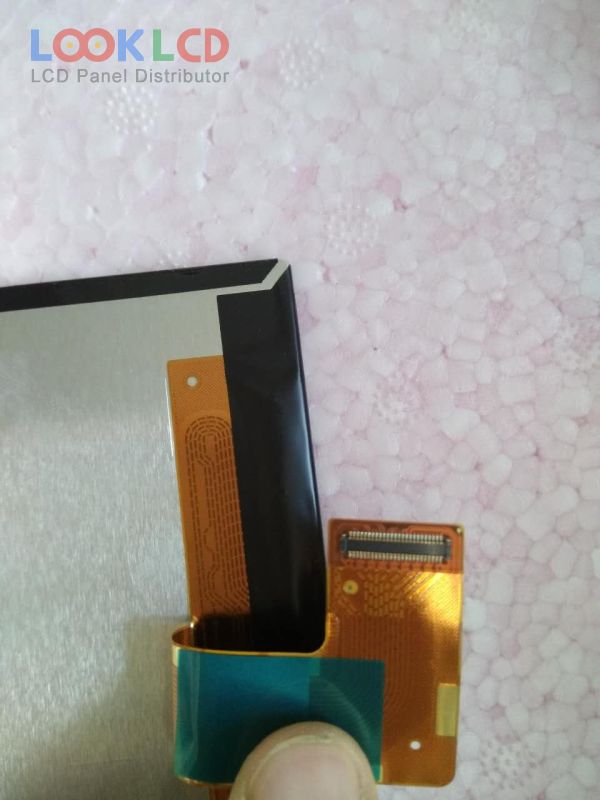

| signalni vmesnik | MIPI (2 ch, 4 data lanes), 50 pins |
| vhodna napetost | 1.8/5.6/-5.6V (Typ.)(IOVCC/VSP/VSN) |
| aplikacija | PAD |
