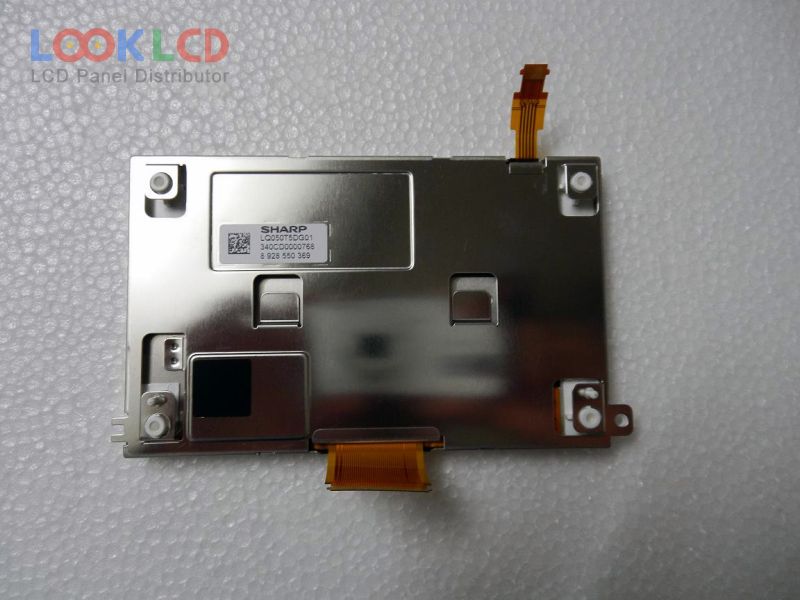

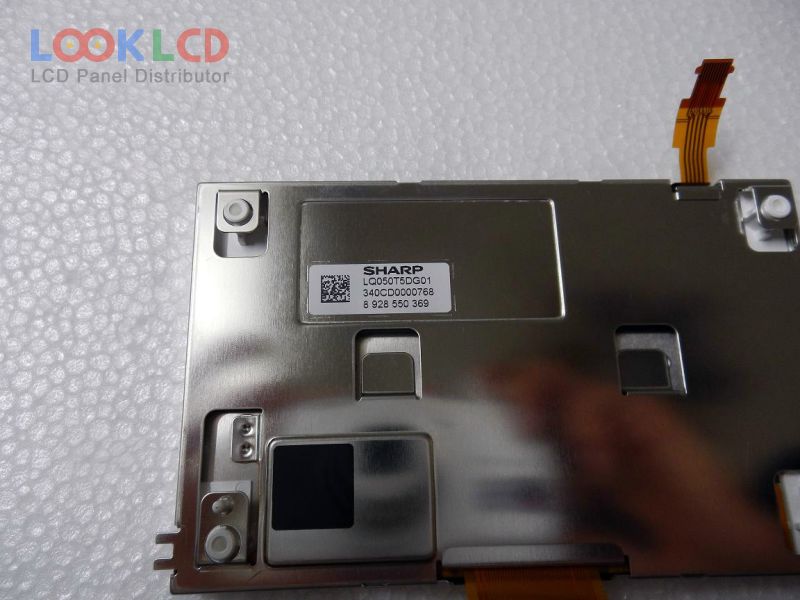

| PartNumber | LQ050T5DG01 |
| Znamka | SHARP |
| Velikost | 5.0 |
| Aplikacija | CNS |
| Resolucija | 400×240 |
| Sestava | LCM |
| Svetlost | 600 |
| CR | 800:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | SHARP |
| panelni model | LQ050T5DG01 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 5.0 inch |
| resolucija | 400(RGB)×240 , WQVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 108×64.8 mm |
| oris | 120.6×75.2×16.8 mm |
| površino | Antiglare |
| svetlost | 600 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193150% |
| odzivni čas | 35 (Typ.)(Tr+Td) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 4S2PWLEDWithout Driver |
| signalni vmesnik | CMOS (1 ch, 6-bit), 40 pins |
| vhodna napetost | 3.3/9.0V (Typ.)(VCC/VDC) |
| aplikacija | CNS |
