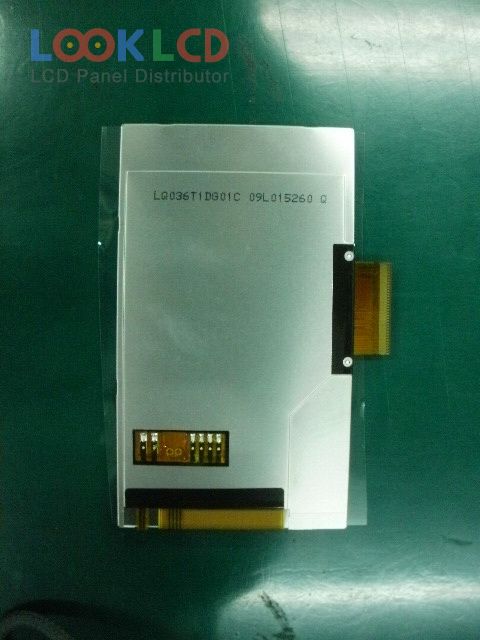

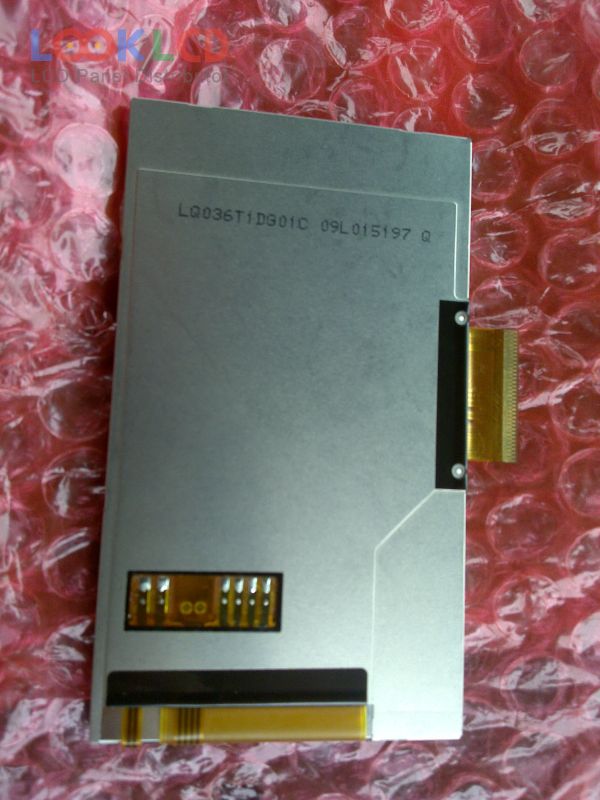

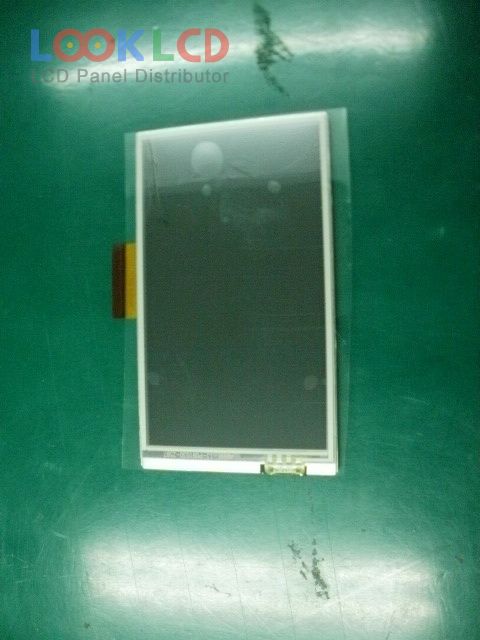

| PartNumber | LQ036T1DG01 |
| Znamka | SHARP |
| Velikost | 3.6 |
| Aplikacija | PND |
| Resolucija | 272×480 |
| Sestava | LCM |
| Svetlost | 410 |
| CR | 300:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | SHARP |
| panelni model | LQ036T1DG01 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 3.6 inch |
| resolucija | 272(RGB)×480 , WQVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 44.472×78.48 mm |
| oris | 51.8×90 mm |
| površino | Antiglare, Hard coating (2H) |
| svetlost | 410 cd/m² (Typ.) |
| kontrastno razmerje | 300:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193150% |
| odzivni čas | 30/30 (Typ.)(Tr/Td) |
| vidni kot | 40/60/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDWithout Driver |
| signalni vmesnik | Parallel RGB + SPI, 67 pins |
| vhodna napetost | 1.8/2.5V (Typ.)(VDDIO/VCI) |
| aplikacija | PND |
| AT050TN33 V.1 | Innolux | 5.0 | 480×272 |
| DLC0430LZG-T | Other | 4.3 | 480×272 |
| DLC0500HZG-8 | Other | 5.0 | 800×480 |
| LMS430HF02 | Samsung | 4.3 | 480×272 |
| LQ035Q1DG04 | SHARP | 3.5 | 320×240 |
| LQ043T1DH42 | SHARP | 4.3 | 480×272 |
| LQ043T3DX04 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0G | SHARP | 4.3 | 480×272 |
| LR043JC111 | Innolux | 4.3 | 480×272 |
| LTP400WQ-F01 | Samsung | 4.0 | 480×272 |
