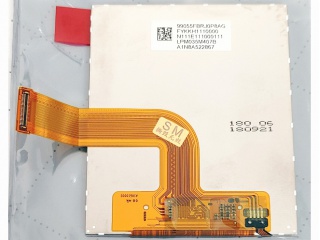

| PartNumber | LPM035M407B |
| Znamka | JDI |
| Velikost | 3.5 |
| Aplikacija | HMD VR AR |
| Resolucija | 1440×1600 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | MIPI |
| znamka | JDI |
| model | LPM035M407B |
| velikost diagonale | 3.5 inch |
| vrsta | a-Si TFT-LCD, LCM |
| slikovnih pik | 1440(RGB)×1600 615PPI |
| konfiguracijo | RGB Vertical Stripe |
| aktivno območje | 59.4(H)×66(V) mm |
| obris dim. | 62.2(H)×73.6(V) mm |
| območje okvirja | - |
| zdravljenje | Hard coating |
| smer pogleda | Symmetry |
| odzivni čas | - |
| vidni kot | - |
| način delovanja | IPS, Normally Black, Transmissive |
| podpira barvo | 16.7M |
| Izvor svetlobe | WLED [5S2P] |
| utež | 17.0g (Typ.) |
| namenjen za | HMD VR AR |
| hitrost sličic | 90Hz |
| plošča na dotik | Without |
| tip vmesnika | MIPI (4 data lanes) |
| napajanje | 1.8/5.7/-5.7V (Typ.)(VDDI/AVDD/AVEE) |
| okolju | Operating Temperature: -10 ~ 55 °C ; Storage Temperature: -20 ~ 70 °C |
| DLC0350FVG-5 | Other | 3.5 | 320×240 |
| DLC0350TZG | Other | 3.5 | 240×320 |
| H345VW01 V0 | AUO | 3.5 | 480×800 |
| LH350WS1-SD01 | LG Display | 3.5 | 640×960 |
| LQ035Q1DG02 | SHARP | 3.5 | 320×240 |
| LQ035Q7DB05 | SHARP | 3.5 | 240×320 |
| NL2432DR22-11B | NLT | 3.5 | 240×320 |
| TM035KDH04 | Tianma | 3.5 | 320×240 |
| TM035PDZ00 | Tianma | 3.5 | 320×480 |
| TX09D200VM0BAA | KOE | 3.5 | 240×320 |
