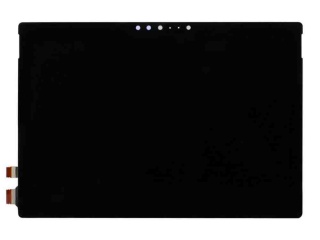

| PartNumber | LP123WQ1-SPA1 |
| Znamka | LG Display |
| Velikost | 12.3 |
| Aplikacija | Laptop |
| Resolucija | 2736×1824 |
| Sestava | LCM, a-Si TFT-LCD |
| Svetlost | |
| CR | 1400:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| proizvajalec | LG Display |
| ime modela | LP123WQ1-SPA1 |
| velikost zaslona | 12.3 inch |
| vrsto zaslona | LCM, a-Si TFT-LCD |
| število slikovnih pik | 2736(RGB)×1824 267PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 259.78 × 173.19 (H×V) |
| obris (mm) | 265.38 × 183.49 × 4.25 (H×V×D) |
| površina okvirja (mm) | 262.18 × 175.59 (H×V) |
| zdravljenje | Hard coating (3H) |
| svetilnost | - |
| kontrastno razmerje | 1400 : 1 (Typ.) (TM) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| odgovor | 27/46 (Max.)(Tr/Td) ms |
| dober pogled na | Symmetry |
| način dela | IPS, Normally Black, Transmissive |
| barvna globina | 16.7M |
| osvetlitev ozadja | WLED , 12K hours , No Driver |
| obrisna oblika | Slim (PCBA Bent, T≤3.0mm) |
| uporablja za | Laptop |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | Without |
| vrsto signala | eDP (4 Lanes) , HBR2 (5.4G/lane) , Connector 60 pins |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -20 ~ 70 °C Operating Temp.: 0 ~ 60 °C |
| C123HAN01.0 | AUO | 12.3 | 1920×720 |
| C123HAN01.1 | AUO | 12.3 | 1920×720 |
| LAM1233548D | JDI | 12.3 | 1920×720 |
| LD123UX1-SMA1 | LG Display | 12.3 | 1600×1200 |
| LQ123K1LG03 | SHARP | 12.3 | 1280×480 |
| LQ123K3LG01 | SHARP | 12.3 | 1280×480 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
| TJ123NP01BA | Innolux | 12.3 | 1280×480 |
| TJ123NP01CA | Innolux | 12.3 | 1280×480 |
| TX31D200VM0BAA | KOE | 12.3 | 1280×480 |
