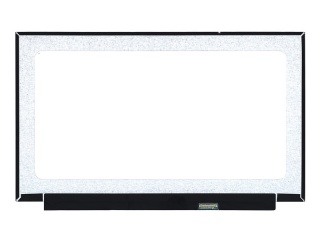

| PartNumber | LM156LFCL10 |
| Znamka | PANDA |
| Velikost | 15.6 |
| Aplikacija | Laptop |
| Resolucija | 1920×1080 |
| Sestava | LCM , Oxide TFT-LC |
| Svetlost | |
| CR | 1000:1 |
| Barve | 262K |
| Osvetlitev ozadja | 10S4P |
| Vmesnik | eDP |
| proizvajalec | PANDA |
| ime modela | LM156LFCL10 (NCP002D) |
| velikost zaslona | 15.6 inch |
| vrsto zaslona | LCM , Oxide TFT-LCD |
| število slikovnih pik | 1920(RGB)×1080 (FHD) 141PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 344.16 × 193.59 (H×V) |
| obris (mm) | 350.66 × 216.69 × 3.2 (H×V×D) |
| površina okvirja (mm) | - |
| zdravljenje | Antiglare, Hard coating (3H) |
| svetilnost | 250 cd/m² (Typ.) |
| kontrastno razmerje | 1000 : 1 (Typ.) (TM) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| odgovor | 25 (Typ.)(Tr+Td) ms |
| dober pogled na | Symmetry |
| način dela | FFS, Normally Black, Transmissive |
| barvna globina | 262K 47% NTSC |
| osvetlitev ozadja | 10S4P WLED , 15K hours , With LED Driver |
| obrisna oblika | Slim (PCBA Flat, T≤3.2mm) |
| uporablja za | Laptop |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | Without |
| vrsto signala | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B156XW02 V3 | AUO | 15.6 | 1366×768 |
| B156XW03 V2 | AUO | 15.6 | 1366×768 |
| B156XW04 V0 | AUO | 15.6 | 1366×768 |
| B156XW04 V5 | AUO | 15.6 | 1366×768 |
| BT156GW01 V.4 | Innolux | 15.6 | 1366×768 |
| LM156WH1-TLE1 | LG Display | 15.6 | 1366×768 |
| LP156WF4-SLC1 | LG Display | 15.6 | 1920×1080 |
| LP156WF4-SPB1 | LG Display | 15.6 | 1920×1080 |
| LP156WH3-TLT2 | LG Display | 15.6 | 1366×768 |
| LTN156AT02-A11 | Samsung | 15.6 | 1366×768 |
