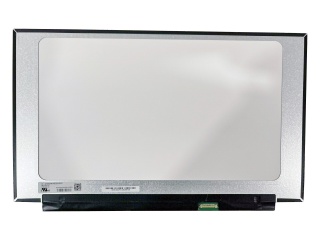

| PartNumber | LM156LFAL02 |
| Znamka | PANDA |
| Velikost | 15.6 |
| Aplikacija | Laptop |
| Resolucija | 1920×1080 |
| Sestava | LCM , Oxide TFT-LC |
| Svetlost | |
| CR | 1000:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| proizvajalec | PANDA |
| velikost zaslona | 15.6 inch |
| število slikovnih pik | 1920(RGB)×1080 (FHD) 141PPI |
| aktivna površina (mm) | 344.16 × 193.59 (H×V) |
| svetilnost | 250 cd/m² (Typ.) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| dober pogled na | Symmetry |
| barvna globina | 262K |
| obrisna oblika | - |
| hitrost osveževanja | 60Hz |
| vrsto signala | eDP (2 Lanes) , eDP1.2 Connector |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| ime modela | LM156LFAL02 |
| vrsto zaslona | LCM , Oxide TFT-LCD |
| ureditev | RGB Vertical Stripe |
| obris (mm) | - |
| kontrastno razmerje | 1000 : 1 (Typ.) (TM) |
| odgovor | 25 (Typ.)(Tr+Tf) ms |
| način dela | FFS, Normally Black, Transmissive |
| osvetlitev ozadja | WLED |
| uporablja za | Laptop |
| zaslon na dotik | Without |
