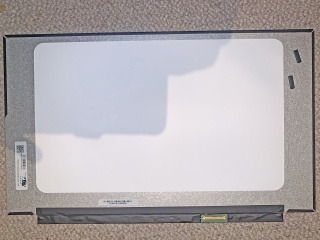

| PartNumber | LM156LF1F02 |
| Znamka | PANDA |
| Velikost | 15.6 |
| Aplikacija | Laptop Gaming |
| Resolucija | 1920×1080 |
| Sestava | Oxide TFT-LCD , LCM |
| Svetlost | |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka | PANDA |
| velikost diagonale | 15.6 inch |
| slikovnih pik | 1920(RGB)×1080 [FHD] 141PPI |
| aktivno območje | 344.16(H)×193.59(V) mm |
| območje okvirja | - |
| svetilnost | 300 cd/m² (Typ.) |
| smer pogleda | Symmetry |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| podpira barvo | 16.7M 72% NTSC |
| slog oblike | Slim (PCBA Flat, T≤3.2mm) |
| hitrost sličic | 144Hz |
| tip vmesnika | eDP (2 Lanes) , eDP1.4 , 40 pins Connector |
| napajanje | 3.3V (Typ.) |
| okolju | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | LM156LF1F02 (NCP004B) |
| vrsta | Oxide TFT-LCD , LCM |
| konfiguracijo | RGB Vertical Stripe |
| obris dim. | 350.66(H)×216.245(V) ×2.6(D) mm |
| zdravljenje | Antiglare, Hard coating (3H) |
| kontrastno razmerje | 1000:1 (Typ.) (TM) |
| odzivni čas | 9/4 (Typ.)(Tr/Td) |
| način delovanja | FFS, Normally Black, Transmissive |
| Izvor svetlobe | WLED , 15K hours , With LED Driver |
| namenjen za | Laptop Gaming |
| plošča na dotik | Without |
