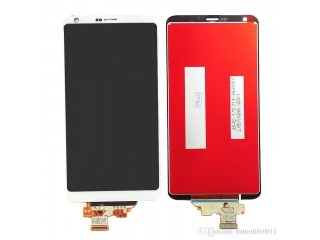

| PartNumber | LH570QH6-SD01 |
| Znamka | LG Display |
| Velikost | 5.7 |
| Aplikacija | Mobile Phone |
| Resolucija | 1440×2880 |
| Sestava | Assembly , a-Si TF |
| Svetlost | |
| CR | 1500:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 4S3P |
| Vmesnik | MIPI |
| proizvajalec | LG Display |
| velikost zaslona | 5.7 inch |
| število slikovnih pik | 1440(RGB)×2880 564PPI |
| aktivna površina (mm) | 64.8 × 129.6 (H×V) |
| površina okvirja (mm) | - |
| svetilnost | 500 cd/m² (Typ.) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10) |
| dober pogled na | Symmetry |
| barvna globina | 16.7M 85% NTSC |
| masa | 26.6±2.7g |
| hitrost osveževanja | 60Hz |
| vrsto signala | MIPI (4 data lanes) , 54 pins Connector |
| napajanje z napetostjo | 1.8/3.3/5.5/-5.5V (Typ.)(VDDI/VPNL/DDVDL/DDVDH) |
| maks. ocene | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| ime modela | LH570QH6-SD01 |
| vrsto zaslona | Assembly , a-Si TFT-LCD |
| ureditev | RGB Vertical Stripe |
| obris (mm) | 68.72 × 145.7 (H×V×D) |
| zdravljenje | Hard coating |
| kontrastno razmerje | 1500 : 1 (Typ.) (TM) |
| odgovor | 25 (Typ.)(Tr+Td) ms |
| način dela | - |
| osvetlitev ozadja | 4S3P WLED , No Driver |
| uporablja za | Mobile Phone |
| zaslon na dotik | PCAP |
