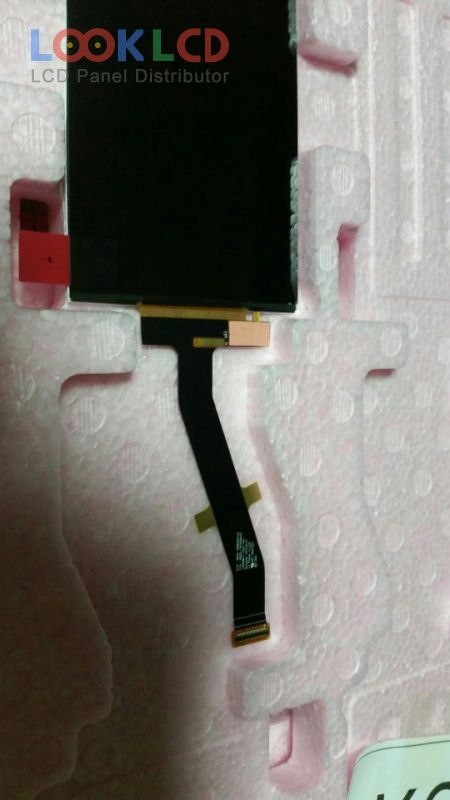

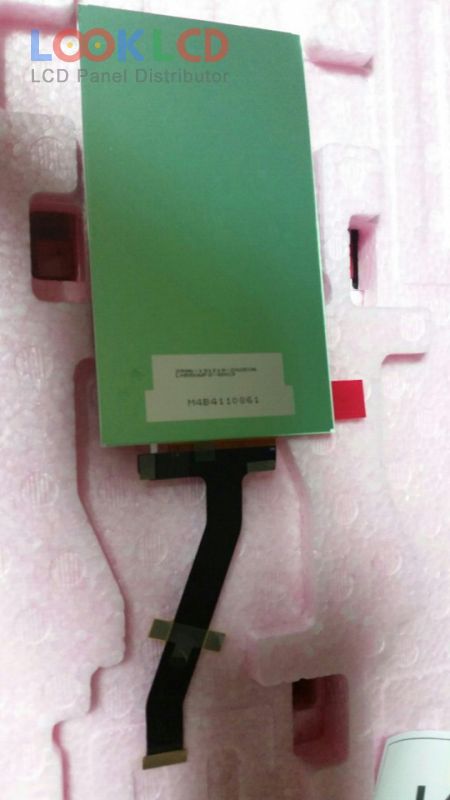

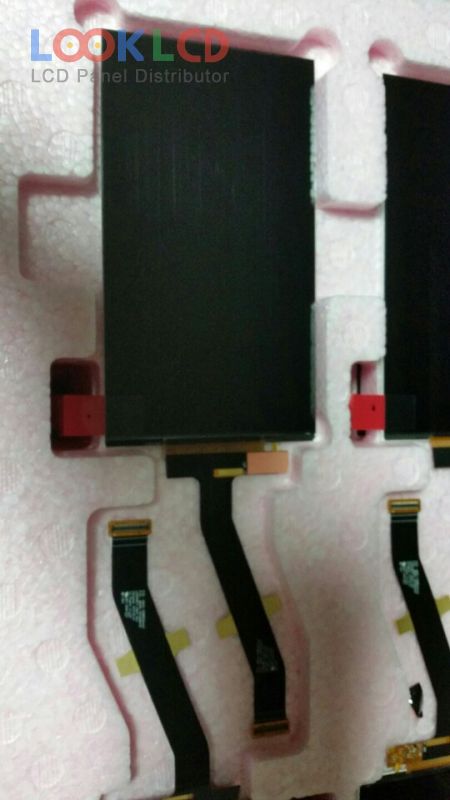

| PartNumber | LH550WF2-SD03 |
| Znamka | LG Display |
| Velikost | 5.5 |
| Aplikacija | MPH |
| Resolucija | 1080×1920 |
| Sestava | LCM |
| Svetlost | 460 |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | MIPI |
| znamka plošče | LG Display |
| panelni model | LH550WF2-SD03 |
| vrsta plošče | LTPS TFT-LCD , LCM |
| velikost plošče | 5.5 inch |
| resolucija | 1080(RGB)×1920 , FHD |
| način prikaza | AH3-IPS, Normally Black, Transmissive |
| aktivno območje | 68.04×120.96 mm |
| oris | 70.94×128.01×1.55 mm |
| površino | |
| svetlost | 460 cd/m² (Typ.) |
| kontrastno razmerje | 1000:1 (Typ.) |
| barve zaslona | 16.7M (8-bit), CIE193170% |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 6S2PWLEDWithout Driver |
| signalni vmesnik | MIPI (4 data lanes), 50 pins |
| vhodna napetost | 1.8/5.0/-5.0V (Typ.)(VDD/VAN/VPG) |
| aplikacija | MPH |
