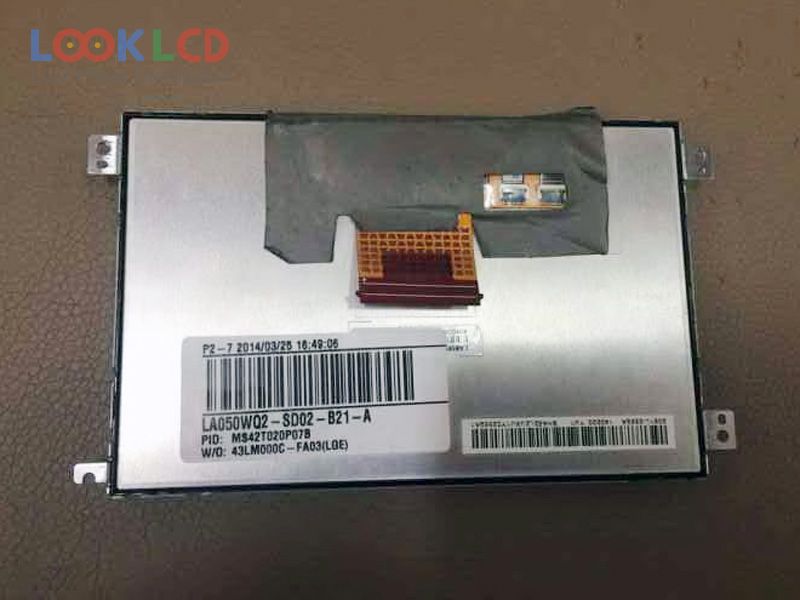

| PartNumber | LA050WQ2-SD02 |
| Znamka | LG Display |
| Velikost | 5.0 |
| Aplikacija | CNS |
| Resolucija | 480×240 |
| Sestava | LCM |
| Svetlost | 500 |
| CR | 800:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | LG Display |
| panelni model | LA050WQ2-SD02 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 5.0 inch |
| resolucija | 480(RGB)×240 , WQVGA |
| način prikaza | IPS, Normally Black, Transmissive |
| aktivno območje | 108×64.8 mm |
| oris | 124.78×80×11.41 mm |
| površino | |
| svetlost | 500 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Min.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 30 (Typ.)(Tr+Td) |
| vidni kot | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDWithout Driver |
| signalni vmesnik | Parallel RGB (1 ch, 6-bit) + SPI, 50 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | CNS |
