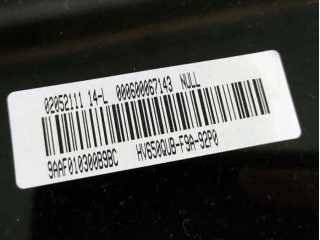

| PartNumber | HV650QUB-F9A |
| Znamka | BOE |
| Velikost | 65 |
| Aplikacija | TV Sets |
| Resolucija | 3840×2160 |
| Sestava | a-Si TFT-LCD, CELL |
| Svetlost | |
| CR | 1200:1 |
| Barve | 1.07B |
| Osvetlitev ozadja | No |
| Vmesnik | V-by-One |
| znamka | BOE |
| model | HV650QUB-F9A |
| velikost diagonale | 65 inch |
| vrsta | a-Si TFT-LCD, CELL |
| slikovnih pik | 3840(RGB)×2160 [UHD] 68PPI |
| konfiguracijo | RGB Vertical Stripe |
| aktivno območje | 1428.48(H)×803.52(V) mm |
| obris dim. | 1438.48(H)×815.02(V) mm |
| območje okvirja | - |
| zdravljenje | Antiglare (Haze 1%) |
| svetilnost | 0 cd/m² |
| kontrastno razmerje | 1200:1 (Typ.) (TM) |
| smer pogleda | Symmetry |
| odzivni čas | 8 (Typ.)(G to G) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| način delovanja | ADS, Normally Black, Transmissive |
| debelina plošče | 0.50+0.50 mm |
| prepustnost | 5.1% (Typ.)(with Polarizer) |
| podpira barvo | 1.07B 99% sRGB |
| Izvor svetlobe | No B/L |
| utež | TBD |
| namenjen za | TV Sets |
| hitrost sličic | 60Hz |
| plošča na dotik | Without |
| detajl d-ic | COF Built-in 12 source chips |
| tip vmesnika | V-by-One 8 lane , 51 pins Connector |
| napajanje | 12.0V (Typ.) |
| okolju | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
