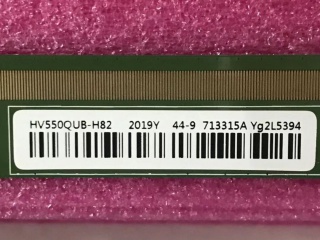

| PartNumber | HV550QUB-H82 |
| Znamka | BOE |
| Velikost | 55 |
| Aplikacija | TV Sets |
| Resolucija | 3840×2160 |
| Sestava | CELL , a-Si TFT-LC |
| Svetlost | |
| CR | 1200:1 |
| Barve | 1.07B |
| Osvetlitev ozadja | No |
| Vmesnik | V-by-One |
| proizvajalec | BOE |
| velikost zaslona | 55 inch |
| število slikovnih pik | 3840(RGB)×2160 (UHD) 80PPI |
| aktivna površina (mm) | 1209.6 × 680.4 (H×V) |
| površina okvirja (mm) | - |
| svetilnost | 0 cd/m² |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| dober pogled na | Symmetry |
| debelina stekla | - |
| barvna globina | 1.07B 73% NTSC |
| masa | 2.70Kgs (Typ.) |
| hitrost osveževanja | 120Hz |
| seznam gonilnikov ic | Built-in COF 6 source chips |
| vrsto signala | V-by-One 8 lane , 51 pins Connector |
| napajanje z napetostjo | 12.0V (Typ.) |
| maks. ocene | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| ime modela | HV550QUB-H82 |

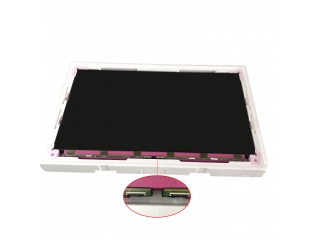

| vrsto zaslona | CELL , a-Si TFT-LCD |
| ureditev | RGB Vertical Stripe |
| obris (mm) | 1225.2 × 696.7 (H×V×D) |
| zdravljenje | Antiglare (Haze 1%), Hard coating (3H) |
| kontrastno razmerje | 1200 : 1 (Typ.) (TM) |
| odgovor | 8 (Typ.)(G to G) ms |
| način dela | ADS, Normally Black, Transmissive |
| transmisivnost | 5.5% (Typ.)(with Polarizer) |
| osvetlitev ozadja | No B/L |
| uporablja za | TV Sets |
| zaslon na dotik | Without |
