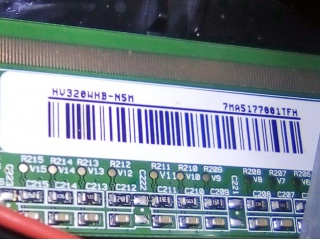

| PartNumber | HV320WHB-N5M |
| Znamka | BOE |
| Velikost | 32.0 |
| Aplikacija | TV Sets |
| Resolucija | 1366×768 |
| Sestava | CELL , a-Si TFT-LC |
| Svetlost | |
| CR | 1200:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | No |
| Vmesnik | LVDS |
| proizvajalec | BOE |
| velikost zaslona | 32.0 inch |
| število slikovnih pik | 1366(RGB)×768 (WXGA) 49PPI |
| aktivna površina (mm) | 697.685 × 392.256 (H×V) |
| površina okvirja (mm) | - |
| svetilnost | 0 cd/m² |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| dober pogled na | Symmetry |
| debelina stekla | 0.50+0.50 mm |
| barvna globina | 16.7M 72% NTSC |
| masa | 877g (Typ.) |
| hitrost osveževanja | 60Hz |
| seznam gonilnikov ic | Built-in COF 2 source chips |

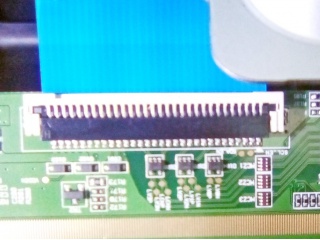

| vrsto signala | LVDS (1 ch, 8-bit) , 30 pins Connector |
| napajanje z napetostjo | 12V (Typ.) |
| maks. ocene | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| ime modela | HV320WHB-N5M |
| vrsto zaslona | CELL , a-Si TFT-LCD |
| ureditev | RGB Vertical Stripe |
| obris (mm) | 715 × 411 × 1.32 (H×V×D) |
| zdravljenje | Antiglare (Haze 1%), Hard coating (3H) |
| kontrastno razmerje | 1200 : 1 (Typ.) (TM) |
| odgovor | 8 (Typ.)(G to G) ms |
| način dela | ADS, Normally Black, Transmissive |
| transmisivnost | 6.1% (Typ.)(with Polarizer) |
| osvetlitev ozadja | No B/L |
| uporablja za | TV Sets |
| zaslon na dotik | Without |
| HV320WHB-N00 | BOE | 31.5 | 1366×768 |
| HV320WHB-N06 | BOE | 31.5 | 1366×768 |
| HV320WHB-N80 | BOE | 31.5 | 1366×768 |
| HV320WX2-200 | BOE | 31.5 | 1366×768 |
| HV320WX2-201 | BOE | 31.5 | 1366×768 |
| HV320WX2-206 | BOE | 31.5 | 1366×768 |
| HV320WX2-500 | BOE | 31.5 | 1366×768 |
| HV320WXC-100 | BOE | 31.5 | 1366×768 |
| HV320WXC-201 | BOE | 31.5 | 1366×768 |
| V320B1-L06 | Innolux | 32.0 | 1366×768 |
