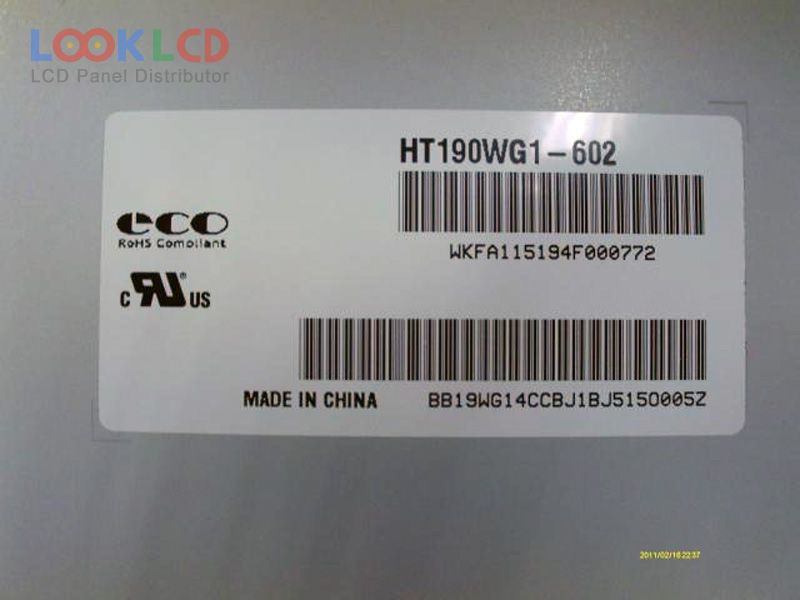

| PartNumber | HT190WG1-602 |
| Znamka | BOE |
| Velikost | 19.0 |
| Aplikacija | DMPC |
| Resolucija | 1440×900 |
| Sestava | LCM |
| Svetlost | 300 |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | BOE |
| panelni model | HT190WG1-602 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 19.0 inch |
| resolucija | 1440(RGB)×900 , WXGA+ |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 408.24×255.15 mm |
| oris | 428×278×17.5 mm |
| površino | Antiglare (Haze 25%), Hard coating (3H) |
| svetlost | 300 cd/m² (Typ.) |
| kontrastno razmerje | 1000:1 (Typ.) |
| barve zaslona | 16.7M (6-bit + Hi-FRC) |
| odzivni čas | 1.5/3.5 (Typ.)(Tr/Td) |
| vidni kot | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| tip svetilke | 4 pcsCCFLWithout Driver |
| signalni vmesnik | LVDS (2 ch, 8-bit), 30 pins |
| vhodna napetost | 5.0V (Typ.) |
| aplikacija | DMPC |
| AA190EA01 | Mitsubishi | 19.0 | 1280×1024 |
| HSD190MEN6-A01 | HannStar | 19.0 | 1280×1024 |
| HT190WG1-100 | BOE | 19.0 | 1440×900 |
| HT190WG1-600 | BOE | 19.0 | 1440×900 |
| HT190WG1-602 | BOE | 19.0 | 1440×900 |
| HT190WG3-100 | BOE | 19.0 | 1440×900 |
| HT190WG3-101 | BOE | 19.0 | 1440×900 |
| HT190WG3-500 | BOE | 19.0 | 1440×900 |
| M190A1-L02 | Innolux | 19.0 | 1440×900 |
| MV190E0M-N10 | BOE | 19.0 | 1280×1024 |
| HSD170MGW1-B01 | HannStar | 17.0 | 1440×900 |
| HSD190ME13-D10 | HannStar | 19.0 | 1280×1024 |
| LM230WF5-TLB1 | LG Display | 23.0 | 1920×1080 |
| LM240WU5-SLA4 | LG Display | 24.0 | 1920×1200 |
| LTM185AT01 | Samsung | 18.5 | 1366×768 |
| M200O1-L02 | Innolux | 20.0 | 1600×900 |
| M215H1-L02 | Innolux | 21.5 | 1920×1080 |
| M236H1-L01 | Innolux | 23.6 | 1920×1080 |
| M270HGE-L10 | Innolux | 27.0 | 1920×1080 |
| TMS190WX1-05TB | Tianma | 19.0 | 1440×900 |
