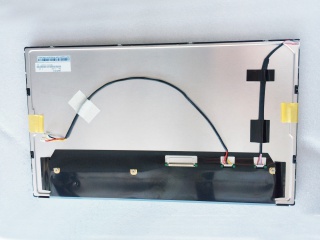

| PartNumber | HSD156JUW1-A00 |
| Znamka | HannStar |
| Velikost | 15.6 |
| Aplikacija | Industrial Outdoor H |
| Resolucija | 1920×1080 |
| Sestava | LCM , a-Si TFT-LCD |
| Svetlost | |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 8S6P |
| Vmesnik | LVDS |
| proizvajalec | HannStar |
| ime modela | HSD156JUW1-A00 |
| velikost zaslona | 15.6 inch |
| vrsto zaslona | LCM , a-Si TFT-LCD |
| število slikovnih pik | 1920(RGB)×1080 (FHD) 141PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 344.16 × 193.59 (H×V) |
| obris (mm) | 363.8 × 215.9 × 12 (H×V×D) |
| površina okvirja (mm) | 346 × 195.4 (H×V) |
| zdravljenje | Antiglare |
| svetilnost | 850 cd/m² (Typ.) |
| kontrastno razmerje | 1000 : 1 (Typ.) (TM) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| odgovor | 18/17 (Typ.)(Tr/Td) ms |
| dober pogled na | Symmetry |
| način dela | IPS Pro, Normally Black, Transmissive |
| barvna globina | 16.7M 70% NTSC |
| osvetlitev ozadja | 8S6P WLED , 50K hours , With LED Driver |
| masa | TBD |
| uporablja za | Industrial Outdoor High Brightness Automotive Display |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | Without |
| vrsto signala | LVDS (2 ch, 8-bit) , 30 pins Connector |
| napajanje z napetostjo | 5.0V (Typ.) |
| maks. ocene | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
