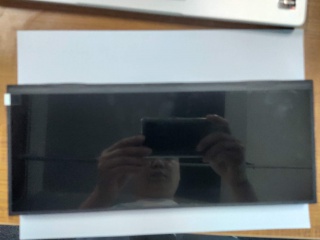

| PartNumber | HSD123JPW3-A10 |
| Znamka | HannStar |
| Velikost | 12.3 |
| Aplikacija | Outdoor High Brightn |
| Resolucija | 1920×720 |
| Sestava | LCM, a-Si TFT-LCD |
| Svetlost | |
| CR | 1500:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 11S4P |
| Vmesnik | LVDS |
| proizvajalec | HannStar |
| ime modela | HSD123JPW3-A10 |
| velikost zaslona | 12.3 inch |
| vrsto zaslona | LCM, a-Si TFT-LCD |
| število slikovnih pik | 1920(RGB)×720 167PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 292.032 × 109.512 (H×V) |
| obris (mm) | 302 × 125.4 × 14.2 (H×V×D) |
| površina okvirja (mm) | - |
| zdravljenje | Glare (Haze 0%), Hard coating |
| svetilnost | 850 cd/m² (Typ.) |
| kontrastno razmerje | 1500 : 1 (Typ.) (TM) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| odgovor | 25 (Typ.)(Tr+Td) ms |
| dober pogled na | Symmetry |
| način dela | IPS Pro, Normally Black, Transmissive |
| barvna globina | 16.7M 75% NTSC |
| osvetlitev ozadja | 11S4P WLED , 30K hours , No Driver |
| masa | 345/378g (Typ./Max.) |
| uporablja za | Outdoor High Brightness Automotive Display |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | Without |
| vrsto signala | LVDS (2 ch, 8-bit) , Connector 50 pins |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| AV123Z7M-N11 | BOE | 12.3 | 1920×720 |
| C123HAN01.0 | AUO | 12.3 | 1920×720 |
| C123HAN01.1 | AUO | 12.3 | 1920×720 |
| LAM1233548D | JDI | 12.3 | 1920×720 |
| LD123UX1-SMA1 | LG Display | 12.3 | 1600×1200 |
| LQ123K1LG03 | SHARP | 12.3 | 1280×480 |
| LQ123K3LG01 | SHARP | 12.3 | 1280×480 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
| TJ123NP01CA | Innolux | 12.3 | 1280×480 |
| TX31D200VM0BAA | KOE | 12.3 | 1280×480 |
