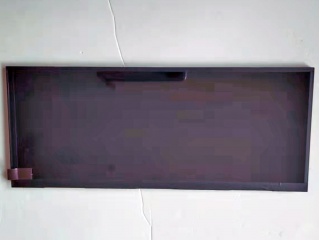

| PartNumber | HSD103JPW2-H10 |
| Znamka | HannStar |
| Velikost | 10.3 |
| Aplikacija | Outdoor High Brightn |
| Resolucija | 1920×720 |
| Sestava | LCM , a-Si TFT-LCD |
| Svetlost | |
| CR | 1500:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 4 |
| Vmesnik | LVDS |
| proizvajalec | HannStar |
| velikost zaslona | 10.3 inch |
| število slikovnih pik | 1920(RGB)×720 200PPI |
| aktivna površina (mm) | 243.648 × 91.368 (H×V) |
| površina okvirja (mm) | 246.7 × 94.4 (H×V) |
| svetilnost | 1000 cd/m² (Typ.) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| dober pogled na | Symmetry |
| barvna globina | 16.7M 70% NTSC |
| masa | TBD |
| hitrost osveževanja | 60Hz |
| vrsto signala | LVDS (2 ch, 8-bit) , 60 pins FPC |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -40 ~ 95 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| ime modela | HSD103JPW2-H10 |
| vrsto zaslona | LCM , a-Si TFT-LCD |
| ureditev | RGB Vertical Stripe |
| obris (mm) | 258.8 × 110 × 17 (H×V×D) |
| zdravljenje | Antiglare, Hard coating (3H) |
| kontrastno razmerje | 1500 : 1 (Typ.) (TM) |
| odgovor | 30 (Max.)(Tr+Td) ms |
| način dela | IPS Pro, Normally Black, Transmissive |
| osvetlitev ozadja | 4 strings WLED , 20K hours , No Driver |
| uporablja za | Outdoor High Brightness Automotive Display |
| zaslon na dotik | Without |
