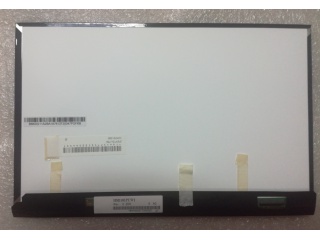

| PartNumber | HSD101PUW1-E00 |
| Znamka | HannStar |
| Velikost | 10.1 |
| Aplikacija | Pad & Tablet |
| Resolucija | 1920×1200 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | MIPI |
| znamka | HannStar |
| velikost diagonale | 10.1 inch |
| slikovnih pik | 1920(RGB)×1200 [WUXGA] 225PPI |
| aktivno območje | 216.576(H)×135.36(V) mm |
| svetilnost | - |
| smer pogleda | Symmetry |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| podpira barvo | 16.7M 50% NTSC |
| utež | - |
| hitrost sličic | 60Hz |
| tip vmesnika | MIPI (4 data lanes) , 39 pins Connector |
| napajanje | 3.3V (Typ.) |
| okolju | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

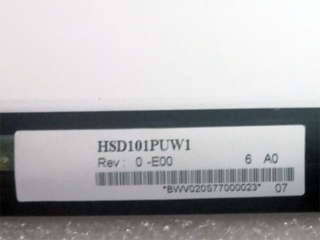

| model | HSD101PUW1-E00 |
| vrsta | a-Si TFT-LCD , LCM |
| konfiguracijo | RGB Vertical Stripe |
| obris dim. | - |
| kontrastno razmerje | 1000:1 (Typ.) (TM) |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| način delovanja | IPS Pro, Normally Black, Transmissive |
| Izvor svetlobe | WLED , 10K hours |
| namenjen za | Pad & Tablet |
| plošča na dotik | Without |
| HSD101PFW2-B00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW2-C00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW3-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-B01 | HannStar | 10.1 | 1024×600 |
| HSD101PUW1-A00 | HannStar | 10.1 | 1920×1200 |
| HSD101PWW1-A00 Rev.4 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-B00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-F01 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-G10 | HannStar | 10.1 | 1280×800 |
| HSD101PWW2-A01 | HannStar | 10.1 | 1280×800 |
