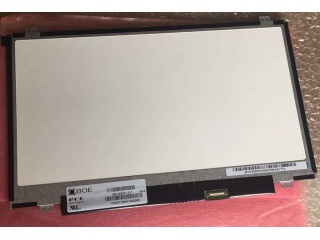

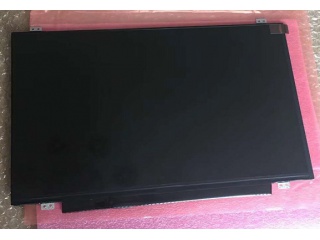

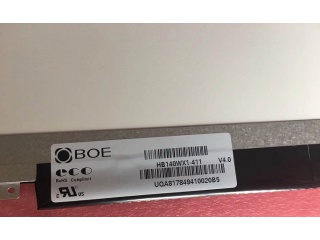

| PartNumber | HB140WX1-411 |
| Znamka | BOE |
| Velikost | 14.0 |
| Aplikacija | Laptop |
| Resolucija | 1366×768 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 600:1 |
| Barve | 262K |
| Osvetlitev ozadja | 9S4P |
| Vmesnik | eDP |
| znamka plošče | BOE |
| panelni model | HB140WX1-411 (BOE0600) |
| velikost plošče | 14.0" |
| vrsta plošče | a-Si TFT-LCD, LCM |
| resolucija | 1366(RGB)×768, WXGA, 112PPI |
| slikovnih pik | RGB Vertical Stripe |
| prikazno območje | 309.399(W)×173.952(H) mm |
| odprtina okvirja | - |
| velikost obrisa | 320.4(W)×205.1(H) ×3.6(D) mm |
| površino | Antiglare |
| svetlost | 220 cd/m² (Typ.) |
| kontrastno razmerje | 600:1 (Typ.) (TM) |
| vidni kot | 45/45/20/40 (Typ.)(CR≥10) |
| način prikaza | TN, Normally White, Transmissive |
| najboljši pogled na | 6 o'clock |
| odzivni čas | 8 (Typ.)(Tr+Td) |
| barve zaslona | 262K 45% NTSC |
| tip svetilke | 9S4P WLED , 15K hours , With LED Driver |
| pogostost | 60Hz |
| zaslon na dotik | Without |
| slog oblike | Flat (PCBA Flat, T3.4~4.0mm) |
| aplikacija | Laptop |
| signalni vmesnik | eDP (1 Lane) , HBR1 (2.7G/lane) , 30 pins Connector |
| vhodna napetost | 3.3V (Typ.) |
| okolju | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
