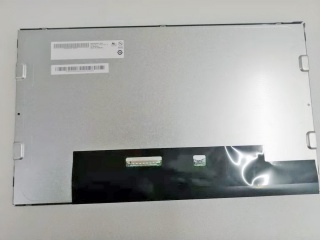

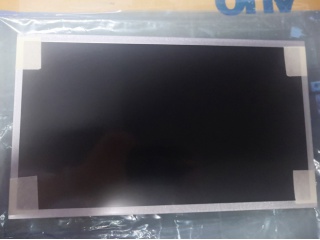

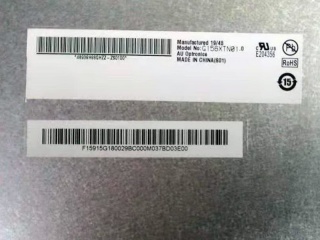

| PartNumber | G156XTN01.0 |
| Znamka | AUO |
| Velikost | 15.6 |
| Aplikacija | Industrial |
| Resolucija | 1366×768 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka | AUO |
| model | G156XTN01.0 |
| velikost diagonale | 15.6 inch |
| vrsta | a-Si TFT-LCD, LCM |
| slikovnih pik | 1366(RGB)×768 [WXGA] 100PPI |
| konfiguracijo | RGB Vertical Stripe |
| aktivno območje | 344.232(H)×193.536(V) mm |
| obris dim. | 363.8(H)×215.9(V) ×9.6(D) mm |
| območje okvirja | 350.4(H)×196.94(V) mm |
| zdravljenje | Antiglare, Hard coating (3H), Reflection 4.3% (Typ.) |
| svetilnost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) (TM) |
| smer pogleda | 6 o'clock |
| odzivni čas | 10 (Typ.)(Tr+Td) |
| vidni kot | 85/85/50/80 (Typ.)(CR≥10) |
| način delovanja | TN, Normally White, Transmissive |
| podpira barvo | 16.7M 62% NTSC |
| Izvor svetlobe | WLED , 50K hours , With LED Driver |
| utež | 860g (Typ.) |
| namenjen za | Industrial |
| hitrost sličic | 60Hz |
| plošča na dotik | Without |
| tip vmesnika | LVDS (1 ch, 8-bit) , 30 pins Connector |
| napajanje | 3.3V (Typ.) |
| okolju | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |
