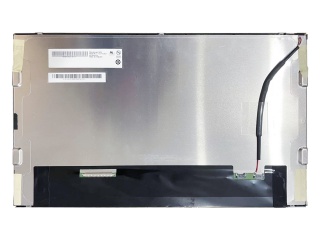

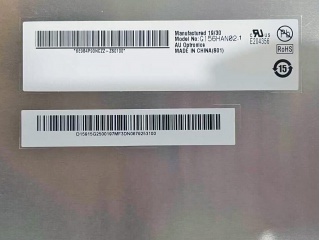

| PartNumber | G156HAN02.1 |
| Znamka | AUO |
| Velikost | 15.6 |
| Aplikacija | Industrial Medical I |
| Resolucija | 1920×1080 |
| Sestava | LCM , a-Si TFT-LCD |
| Svetlost | |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| proizvajalec | AUO |
| velikost zaslona | 15.6 inch |
| število slikovnih pik | 1920(RGB)×1080 (FHD) 141PPI |
| aktivna površina (mm) | 344.16 × 193.59 (H×V) |
| površina okvirja (mm) | 347.06 × 196.49 (H×V) |
| svetilnost | 500 cd/m² (Typ.) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| dober pogled na | Symmetry |
| barvna globina | 16.7M 99% sRGB |
| masa | 600/660g (Typ./Max.) |
| hitrost osveževanja | 60Hz |
| vrsto signala | LVDS (2 ch, 8-bit) , 30 pins Connector |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 70 °C |
| ime modela | G156HAN02.1 |
| vrsto zaslona | LCM , a-Si TFT-LCD |
| ureditev | RGB Vertical Stripe |
| obris (mm) | 363.8 × 215.9 × 9.3 (H×V×D) |
| zdravljenje | Antiglare, Hard coating (3H) |
| kontrastno razmerje | 1000 : 1 (Typ.) (TM) |
| odgovor | 25 (Typ.)(Tr+Td) ms |
| način dela | AHVA, Normally Black, Transmissive |
| osvetlitev ozadja | WLED , 50K hours , With LED Driver |
| uporablja za | Industrial Medical Imaging |
| zaslon na dotik | Without |
